Replacement Cover Plate for 19mm RTD Lever on Short Backplate Durable Metal Fitting Easy Installation

By focusing on a precision 19mm bore and a modular “snap-on” design, these Short Backplate Replacement allow for a rapid, non-intrusive upgrade of existing door hardware, revitalizing the aesthetic of a building without the cost of replacing internal lock cases or latches.

In high-specification commercial projects, the choice between a standard (220mm) and a Short (170mm) backplate is often dictated by the door’s construction and the surrounding architectural features.

• Precision 19mm Lever Fit: The central bore is specifically machined for the 19mm Return-to-Door (RTD) lever. A high-tolerance fit is essential for safety hardware; it prevents the “handle sag” and mechanical rattle often found in universal plates with oversized apertures.

• Architectural Flexibility: Short backplates are the primary solution for doors with narrow stiles or those featuring decorative glazing beads. By reducing the vertical footprint, these Short Backplate Replacement sit comfortably on the door leaf without overlapping with glass moldings or fire-rated vision panels.

• Concealed Structural Fixing: These Short Backplate Replacement utilize a two-part assembly. A heavy-duty steel sub-chassis is bolted directly through the door to provide a “sandwich” grip. The decorative short cover then “snaps” over the top, hiding all screw heads. This creates a clean, minimalist aesthetic and makes the hardware tamper-resistant in public environments.

• Infection Control (Grade 304): Stamped from Grade 304 Stainless Steel, these Short Backplate Replacement are non-porous and naturally antimicrobial. They are specifically engineered to withstand the aggressive chemical disinfectants required for hygiene protocols in hospitals and schools without tarnishing or pitting.

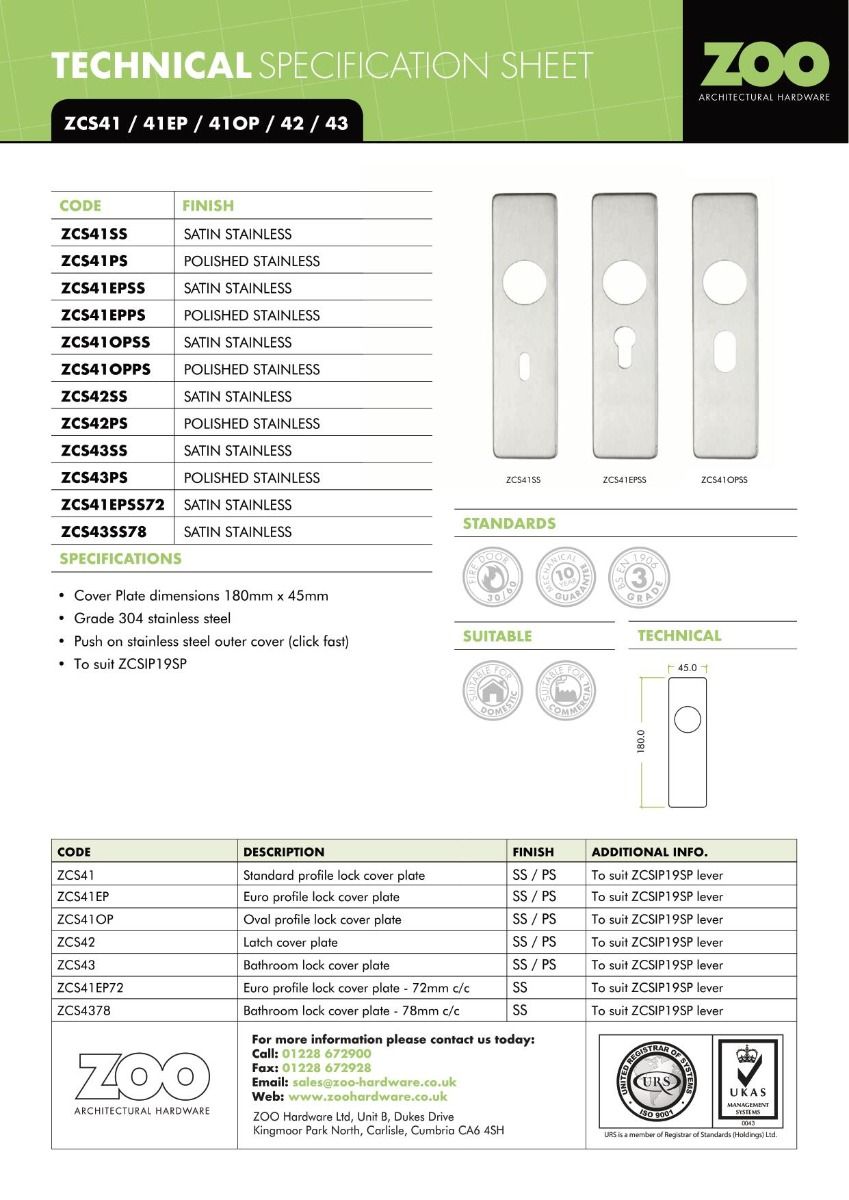

Technical Specifications & Performance of Short Backplate Replacement

For professional specifiers, the technical compatibility of the replacement plate is the most critical factor for a successful retrofit.

Recommended Professional Finishes

For healthcare and education facilities, the is the industry standard. Its brushed texture is designed to hide micro-scratches from jewelry or heavy key rings, maintaining a “new” appearance even in high-traffic zones. Satin Stainless Short Backplate

For contemporary commercial offices and boutique developments, the provides a sophisticated, high-contrast look. The durable powder-coated finish is fingerprint-resistant, ensuring the hardware looks clean in communal areas. Matte Black Short Backplate

Installation Pro-Tip: The “Hole-Cover” Strategy

When replacing older, larger hardware, you may find “ghosting” or old screw holes on the door.

1. Before installing the new Short Backplate, clean the door surface thoroughly with a specialized stainless-steel cleaner to remove oxidation rings.

2. Align the new sub-chassis using the handle spindle as your center point.

3. If the previous screw holes are visible outside the footprint of the new short plate, you may need to use a specialized wood filler or a matching repair plate.

4. Once the sub-chassis is bolted through, “snap” the decorative cover into place. The audible click confirms the plate is seated flush against the door, providing a professional, gap-free finish.
