Radius Cover Plate for 19mm and 22mm RTD Lever on Backplate DIN Bathroom 78mm Centres

To provide an exhaustive technical breakdown, let’s explore why the 78mm DIN Bathroom Backplate is the definitive specification for modern commercial developments, healthcare facilities, and high-end residential projects. In the specialized field of architectural ironmongery, the “DIN” (Deutsches Institut für Normung) standard represents a shift toward higher precision and improved ergonomics compared to traditional UK hardware.

By centering this hardware on the 78mm PZ standard, manufacturers provide increased clearance between the handle and the privacy function, making 78mm DIN Bathroom Backplate the primary choice for projects requiring strict adherence to DDA (Disability Discrimination Act) and BS 8300 inclusive design mandates.

The transition from the traditional 57mm UK standard to the 78mm DIN center is a hallmark of “European-spec” infrastructure. This increased vertical spacing offers several mechanical and ergonomic advantages that are vital for modern building regulations.

• Superior Ergonomic Clearance: The 78mm distance provides significantly more space between the door handle and the thumbturn. This prevents “knuckle-clash” and makes the privacy function much easier to operate for users with limited manual dexterity or those using mobility aids, directly supporting inclusive access.

• DIN Lock Mechanical Synergy: This 78mm DIN Bathroom Backplate is specifically engineered to match DIN Standard Bathroom Mortice Locks. The 78mm PZ ensures that the thumbturn spindle aligns perfectly with the lock’s internal follower, eliminating the mechanical “binding” and friction drag that often leads to hardware failure in mismatched sets.

• Structural “Snap-On” Architecture: These 78mm DIN Bathroom Backplate utilize a two-part assembly system. A heavy-duty steel sub-base is bolted through the door to provide structural rigidity, while the decorative 78mm cover “snaps” over the top. This hides all fixings, creating a minimalist aesthetic and making the hardware tamper-resistant in public restrooms and office corridors.

• Hygiene and Humidity Resistance: Stamped from Grade 304 Stainless Steel, these 78mm DIN Bathroom Backplate are non-porous and highly resistant to the high-humidity levels found in bathrooms and wet rooms. This material choice prevents the “pitting” and corrosion commonly seen on cheaper zinc or aluminum hardware exposed to steam and aggressive chemical cleaners.

Technical Specifications & Professional Fitment of 78mm DIN Bathroom Backplate

To ensure long-term performance in high-traffic environments, 78mm DIN bathroom plates are engineered to accommodate both standard and heavy-duty lever diameters.

Recommended Hardware Solutions

For healthcare and education facilities, the is the architectural benchmark. Its brushed finish is designed to hide minor scratches and maintain a professional appearance even after years of 24/7 use in demanding public environments.

Satin Stainless 78mm DIN Bathroom Plate

For modern offices and boutique commercial spaces, the offers a sleek, contemporary aesthetic. The high-durability powder coating is fingerprint-resistant, ensuring the hardware looks clean even in high-touch communal areas.

Matte Black 78mm DIN Bathroom Plate

Installation Pro-Tip: The “DIN Alignment” Check

Because DIN locks are built to higher tolerances than standard domestic locks, alignment is critical to prevent the thumbturn from sticking.

1. Insert the handle spindle and the 8mm thumbturn spindle through the sub-chassis and the lock case before marking your screw holes.

2. Use the spindles as a “jig” to ensure the sub-chassis is perfectly centered over the lock’s followers.

3. The Smooth-Turn Test: Before snapping the cover on, operate the thumbturn. If there is any resistance, the plate is likely slightly tilted. Loosen the bolt-through fixings, adjust the position, and re-tighten.

4. Once the movement is effortless, “snap” the decorative cover into place. The audible click confirms a secure, flush fit.

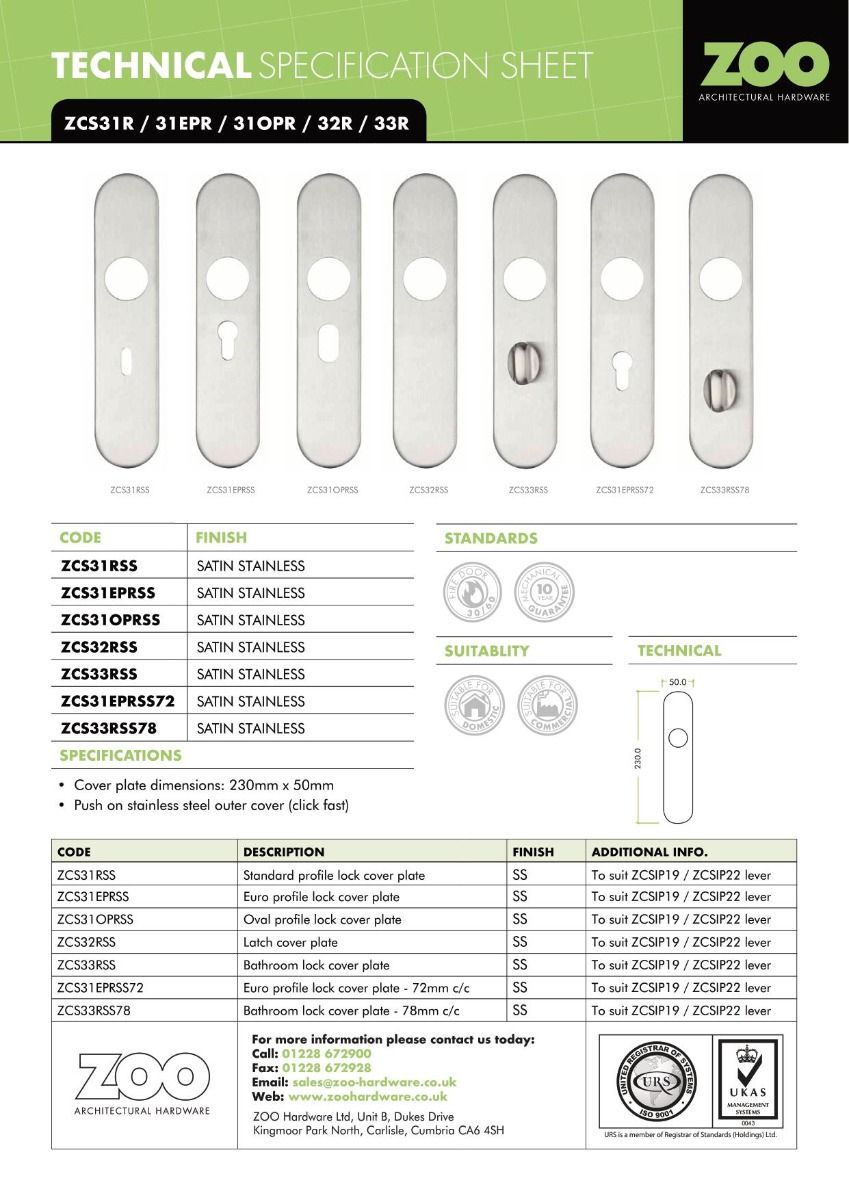

This 78mm DIN Bathroom Backplate is designed for 19mm and 22mm RTD levers on a backplate with a DIN bathroom cut-out and 78mm centres. Crafted from high-quality, durable materials, 78mm DIN Bathroom Backplate offers a practical solution for refurbishing or replacing door hardware while providing a neat and professional finish. The radius design adds a modern, subtle aesthetic while ensuring precise compatibility with standard DIN bathroom lever and backplate fittings.

Ideal for residential and commercial bathrooms, this cover plate is easy to install and helps protect your hardware while enhancing the overall appearance of your door. Combining durability, functionality, and a sleek radius design, the 78mm DIN bathroom cover plate is a reliable and stylish choice for maintaining smooth, secure, and long-lasting door operation.
