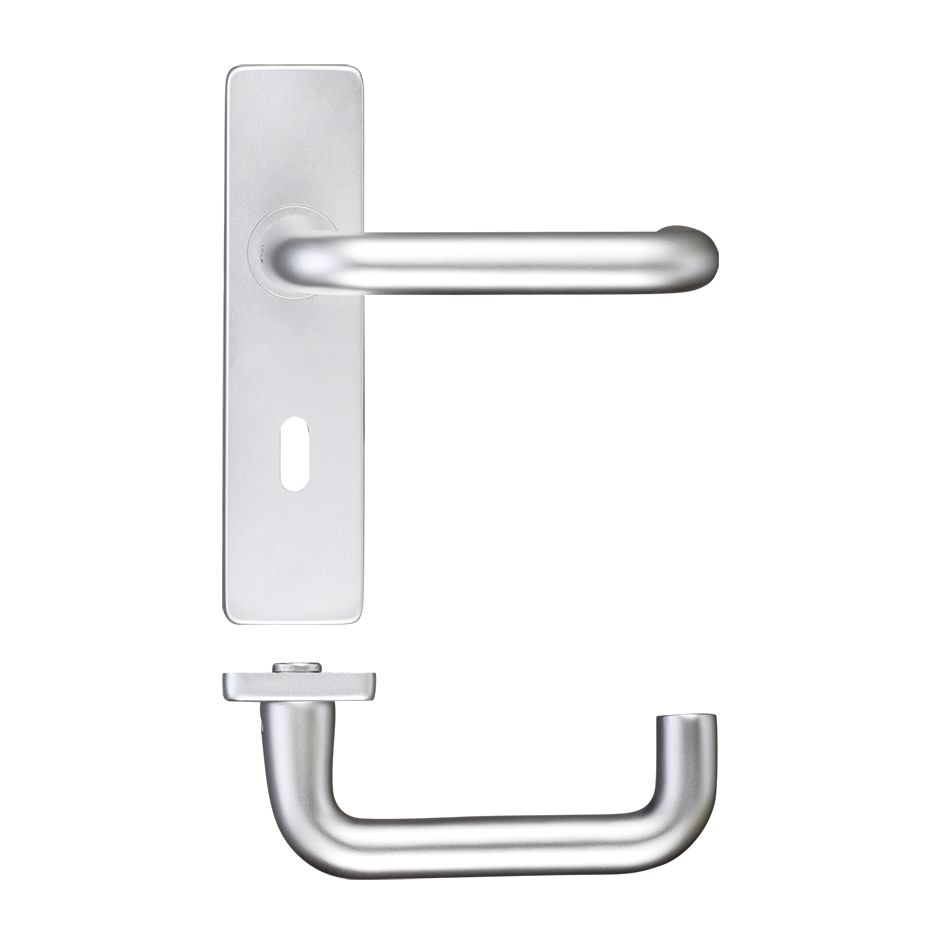

Return to Door Lever on Lock Backplate

The Door Lever on Lock Backplate is the classic architectural solution for doors requiring both a handle and a keyed security function. Unlike “lever on rose” designs, the backplate combines the handle and the keyhole into a single, cohesive unit. This provides a traditional, robust aesthetic while offering a practical advantage: the Door Lever on Lock Backplate (typically 150mm to 220mm) covers old screw holes and door prep marks, making it the premier choice for both new installations and refurbishments.

Crafted in various finishes from Satin Stainless Steel to Polished Brass, these Door Lever on Lock Backplate are engineered to align perfectly with standard UK mortice locks, ensuring a smooth mechanical operation every time the door is opened or locked.

The “Lock Backplate” (featuring a traditional skeleton keyhole) is favored for its structural stability and its ability to protect the door face from heavy use.

• Mechanical Alignment (57mm PZ): Most standard UK lever-on-backplate sets are designed for 57mm centers. This means the distance from the center of the handle spindle to the center of the keyhole matches the internal mortice lock perfectly. This precision prevents the “binding” or friction that can lead to snapped keys or sagging handles.

• Surface Protection & Retrofit: Measuring typically 150mm to 180mm (Short) or 220mm (Standard), the Door Lever on Lock Backplate acts as a protective shield for the timber. In renovation projects, these plates are essential for hiding the “scars” of previous hardware, providing a fresh, professional finish without needing to replace the entire door leaf.

• Integrated Springing: High-quality backplates feature an internal spring mechanism. This works in tandem with the door’s mortice lock to ensure the lever returns to a perfect horizontal position after every use, maintaining a tidy appearance and reducing wear on the lock’s internal components.

• Concealed or Face-Fix Options: Depending on the design, plates are available with visible wood screws for a traditional look, or with concealed fixings where a decorative cover snaps over a sub-chassis for a modern, tamper-resistant finish.

Technical Specifications of Door Lever on Lock Backplate

Recommended Hardware Pairings

To ensure a “best-in-class” installation, the Door Lever on Lock Backplate should be paired with high-performance internal mechanics:

• 3-Lever Mortice Sashlock: For internal bedroom or office doors, a 3-lever sashlock provides reliable security and matches the traditional keyhole profile of the backplate.

• Ball-Bearing Hinges: Use 3-inch or 4-inch hinges in a matching finish (e.g., Satin Stainless) to ensure the door operates silently and remains perfectly aligned.

• Matching Bathroom Version: Most ranges offer a matching “Bathroom Set” (with a thumbturn) and a “Latch Set” (plain plate) to ensure a consistent look across the entire floor of a property.

Installation Pro-Tip: The “Vertical Level” Check

Because a long backplate highlights even a slight tilt, achieving a perfectly vertical alignment is essential for the visual appeal of the door.

1. Insert the Key and Spindle: Before marking your screw holes, insert both the handle spindle and the key into the lock. This uses the internal lock as a centering jig.

2. Use a Spirit Level: Once the handle is centered on the spindle, use a small spirit level against the side of the backplate to ensure it is perfectly vertical.

3. Pilot Holes: Always drill small pilot holes for your screws. This prevents the screw heads from “camming out” (stripping) and ensures they sit flush and straight within the decorative countersinks of the plate.

The Door Lever on Lock Backplate is a strong and practical choice for adding both security and style to your doors. Designed with a return-to-door shape, the handle gives a comfortable grip and makes opening and closing doors smooth and effortless. The lock backplate provides extra safety by working seamlessly with standard locks, making it suitable for both home and commercial use. Its clean and modern look ensures it blends well with different types of interiors.

Made from durable materials, this lever handle is built to last and perform reliably, even in high-traffic areas. It is easy to fit, simple to maintain, and provides a professional finish to any door. Whether you are replacing old handles or fitting new ones, the Return to Door Lever on Lock Backplate offers a dependable and stylish solution.
