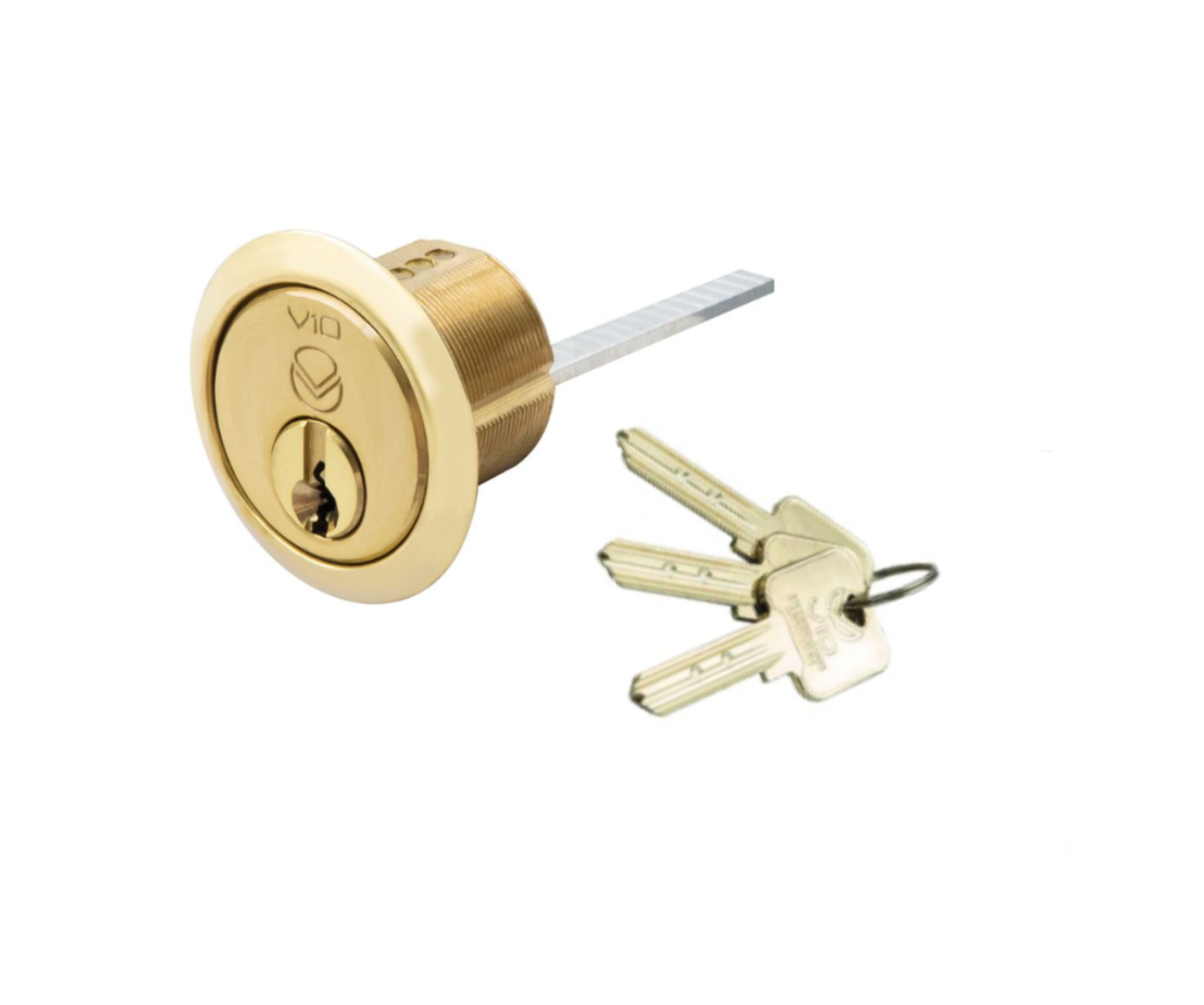

V10 Universal Rim Cylinder – Keyed to Differ

the V10 Universal Rim Cylinder Keyed to Differ (KTD) is the definitive high-security upgrade for residential and commercial night latches. While standard 5-pin cylinders are common, the V10 Universal Rim Cylinder is an architectural-grade component engineered to thwart sophisticated entry methods. Its “Universal” designation ensures that the 32mm diameter housing and notched tailbar can seamlessly replace virtually any standard rim cylinder (often called “Yale-style” locks), providing a massive security boost without the need to replace the internal latch body or modify the door.

By focusing on a 10-pin dual-row mechanism, the V10 offers a level of key complexity and physical resistance that far exceeds standard building requirements, making it the preferred choice for perimeter security and high-value asset protection.

The V10 isn’t just a replacement part; it is a mechanical upgrade. In the world of locksmithing, “Keyed to Differ” (KTD) means each cylinder is unique, and the V10’s internal architecture ensures that uniqueness is backed by physical strength.

• 10-Pin High-Precision Core: Traditional locks use a single row of 5 or 6 pins. The V10 utilizes two distinct rows of five pins. This dual-axis approach creates a significantly more complex “shear line,” making the lock exponentially harder to “read” or manipulate with picking tools.

• Kinetic “Anti-Bump” Technology: Lock bumping is a common technique used to bypass 5-pin cylinders. The V10’s staggered pin heights and high-tension internal springs make it virtually impossible to jump all ten pins simultaneously, providing a robust defense against kinetic energy attacks.

• Anti-Drill & Anti-Snap Hardening: The face of the V10 is reinforced with hardened steel inserts. These are strategically placed to deflect drill bits away from the pin chambers. Additionally, the solid brass body is designed with a sacrificial “snap line” or reinforced core to ensure the lock remains functional even if the front face is subjected to heavy-duty physical force.

• Universal “Snap-Off” Tailbar: To accommodate varying door thicknesses (from standard 35mm to heavy-duty 54mm fire doors), the rear tailbar is pre-notched. This allows the installer to “snap” the bar to the exact length required to engage the internal night latch, ensuring a perfect mechanical bond.

Key Control and Accountability

When you purchase a V10 Universal Rim Cylinder cylinder, you aren’t just getting a lock; you are getting a managed security system.

1. Unique Security Code Card: Every KTD cylinder is supplied with a unique registration card. This card contains the specific “bitting” code for your 10 pins.

2. Restricted Key Duplication: Unlike standard keys that can be cut at any hardware store, V10 keys require high-precision machinery. The presence of the code card ensures that only authorized personnel can order additional keys, preventing unauthorized “spare” keys from being made by tenants or contractors.

3. Grade 6 Performance: The V10 Universal Rim Cylinder is tested to BS EN 1303 Grade 6, the highest level of durability and security for cylinder locks, ensuring it can withstand over 100,000 cycles of operation.

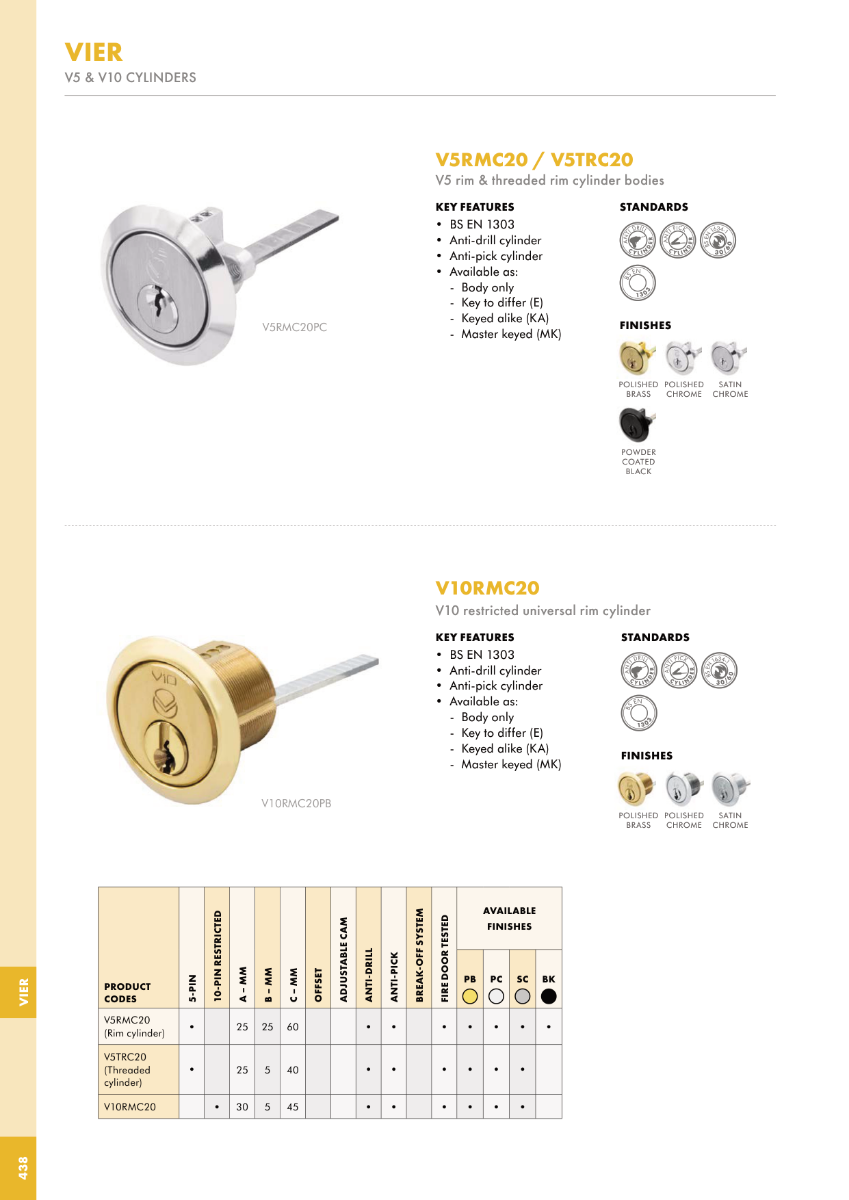

Technical Specifications of V10 Universal Rim Cylinder

Recommended Professional Finishes

For modern entrance doors, the provides a sleek, industrial aesthetic with maximum resistance to atmospheric corrosion. It is the ideal choice for coastal properties or urban environments where durability is as important as style.

Satin Chrome V10 Rim Cylinder

For traditional timber doors or period refurbishments, the maintains a classic “kerb appeal” without compromising on 10-pin security. The high-quality brass finish is lacquered to resist tarnishing while protecting the high-precision core.

Polished Brass V10 Rim Cylinder

Installation Pro-Tip: The “Alignment Check”

Because the V10 Universal Rim Cylinder has 10 high-precision pins, it requires a perfect mechanical alignment to ensure smooth operation.

1. Insert the V10 into the door and secure the mounting plate loosely first.

2. Slide the night latch onto the tailbar. If the tailbar is too long, snap it at the nearest notch using two pairs of pliers.

3. The Smooth-Turn Test: Before tightening the final screws, insert the key and turn it. If there is any “grinding” or resistance, slightly adjust the position of the cylinder.

4. Once the movement is effortless, tighten the M5 break-off screws. This ensures the 10-pin mechanism isn’t being “loaded” by an off-center tailbar, which could lead to premature wear.

Enhance your door security with the  V10 Universal Rim Cylinder, designed for reliable locking and smooth operation. Each cylinder is supplied with its own unique key, providing independent access for residential, commercial, and multi-unit properties. Its universal design ensures compatibility with a wide range of doors, offering a practical and durable locking solution.

Crafted from premium-quality materials, the  V10 Universal Rim Cylinder resists tampering, forced entry, and daily wear, ensuring long-term performance. The keyed-to-differ feature allows each V10 Universal Rim Cylinder to operate independently, making it ideal for offices, apartments, and multi-door installations. Easy to install and built for consistent use, this V10 Universal Rim Cylinder combines strength, convenience, and peace of mind.
