Bulb End Casement Stay Durable Window Restrictor Traditional Secure Fitting

When selecting a traditional bulb end casement stay for a heritage project, the material and finish are paramount. These options provide an authentic look backed by modern manufacturing standards.

The Rustic Cottage Essential

The Ludlow Black Antique Bulb End Stay is the industry standard for barn conversions and rural cottages. Made from solid cast iron, it features a unique “pitted” texture that mimics hand-forged hardware from centuries past.

• Best For: Authentic rustic interiors and heavy timber windows.

• Key Feature: Finished with a high-durability powder coating to protect against moisture and rust.



The Formal Heritage Choice

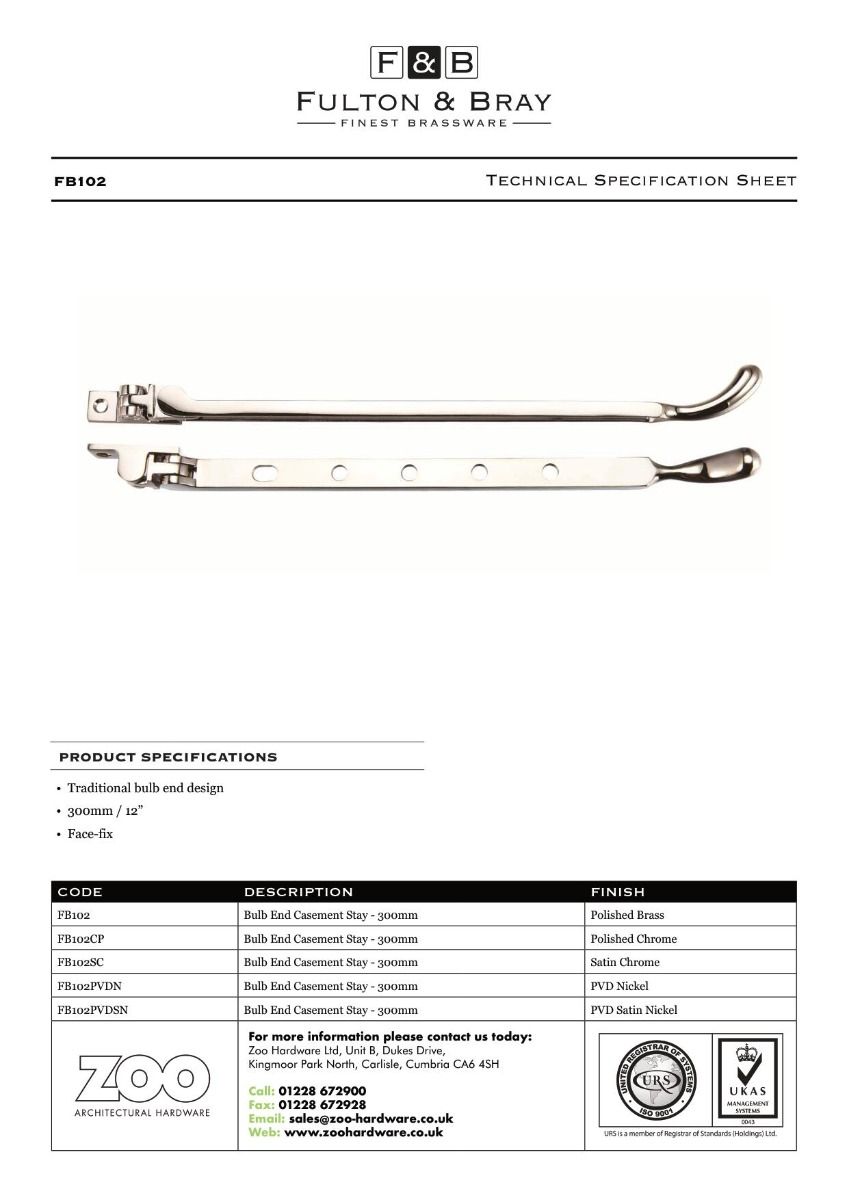

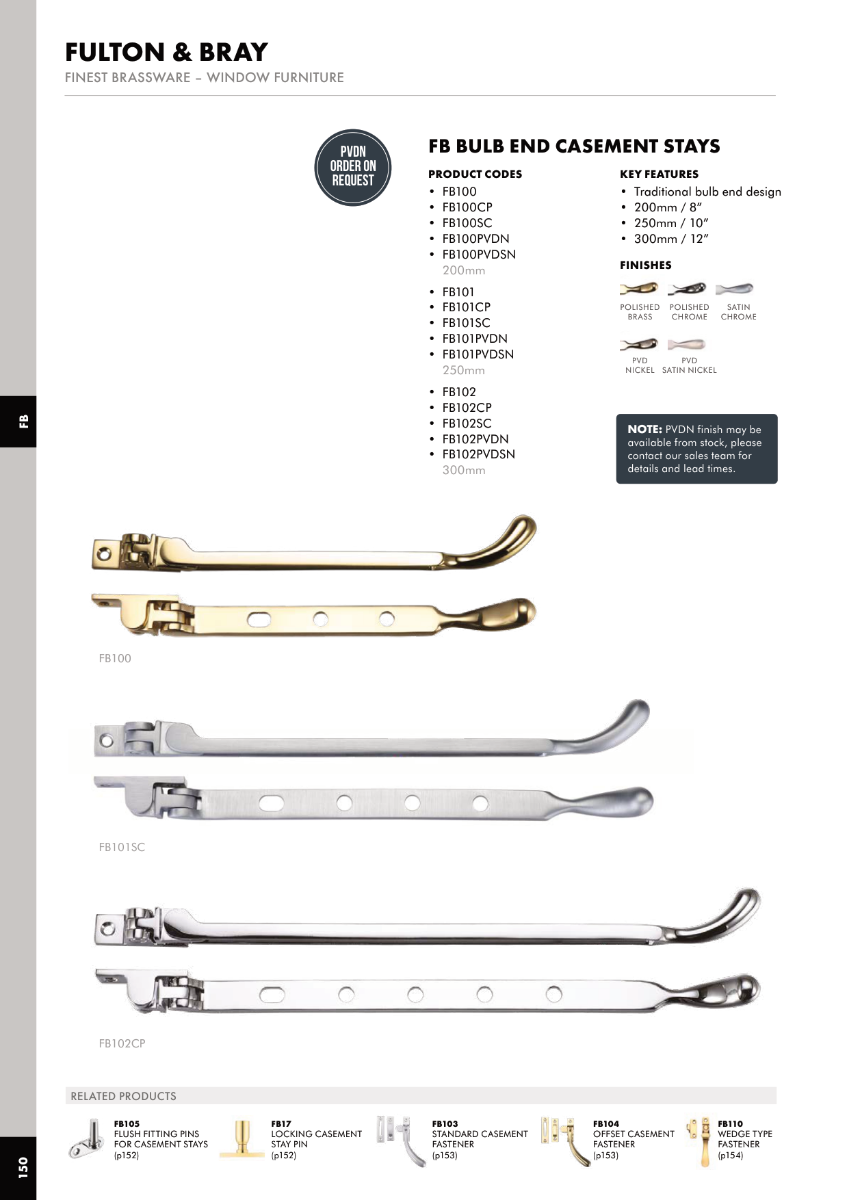

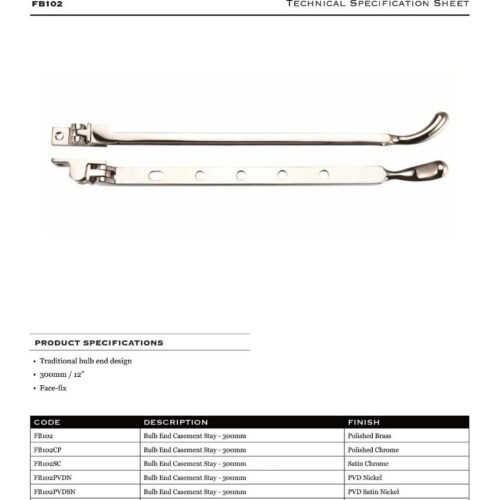

For a more polished, upscale appearance, the Fulton & Bray Polished Brass Stay is a premier choice. Forged from solid brass, it offers a heavy, high-quality feel and natural resistance to corrosion, making it suitable for coastal or high-humidity environments.

• Best For: Victorian and Georgian restorations and premium residential designs.

• Key Feature: A deep-luster finish that develops a rich, authentic patina over time if left unpolished.

---

The Definitive Guide to traditional bulb end casement stay

1. Design Heritage: The “Teardrop” Silhouette

The traditional bulb end casement stay earns its name from the smooth, rounded “bulb” at the end of the handle. Historically, this design emerged as a more minimalist, understated alternative to the elaborate “Monkey Tail” or “Curly Tail” fasteners.

• Ergonomics: The rounded bulb is designed to sit comfortably in the palm. This makes it effortless to lift the stay off its pins, even when the window is in a hard-to-reach position.

• Aesthetic Versatility: Because of its clean lines, the bulb end design is one of the few pieces of traditional hardware that fits equally well in a 17th-century cottage and a modern “Craftsman” style home. It provides a touch of history without overwhelming the window’s visual profile.

2. Selecting the Correct Length (8″, 10″, 12″)

Choosing the right length is critical for both the functionality and the safety of the window.

• 8-Inch Stays: These are typically reserved for small fanlights or narrow casements. They provide a modest opening that is perfect for gentle airflow in bathrooms or hallways.

• 10-Inch Stays: This is the most common residential size. A 10-inch stay provides a generous opening for standard side-hung windows, ensuring maximum ventilation during the summer months.

• 12-Inch Stays: Used for very wide casements. The extra length allows a large window to open to a nearly 90-degree angle, which is often necessary to meet certain emergency egress or high-volume airflow requirements.

3. Material Integrity: Cast Iron vs. Solid Brass

Your choice of material should be dictated by the environmental conditions of the property.

• Solid Cast Iron: Usually found in the Black Antique finish. While incredibly strong, iron is susceptible to rust if the coating is chipped. It is perfect for dry, inland areas and provides the most “rugged” look.

• Solid Forged Brass: As a non-ferrous metal, brass cannot rust. This makes it the “Elite” material choice for longevity. Whether you choose it in Satin Chrome for a modern twist or Antique Brass for a heritage look, the core material remains impervious to the elements.

4. Security and Mechanical Operation

A traditional bulb end casement stay is more than a handle; it is a mechanical restrictor.



• The Pin System: Every stay is supplied with two pins—a “Rest Pin” to hold the window closed and an “Open Pin” to hold it at a specific angle. For the window to seal correctly and prevent drafts, the pins must be installed with mathematical precision.

• Locking Pins: For ground-floor windows, a traditional bulb end casement stay can be upgraded with a Locking Stay Pin. This replaces the standard pin with a version that requires a key or a hex tool to release the stay, providing a significant deterrent against opportunistic intruders who might break a small pane of glass to reach the handle.

5. Installation & Maintenance Pro-Tips

• Pilot Holes: When working with aged timber, always drill pilot holes. Driving a screw directly into seasoned oak can cause the wood to split or the screw head to shear off.

• Horizontal Alignment: Use a spirit level to ensure the stay sits perfectly horizontal when the window is closed. A sagging stay not only looks unprofessional but also puts uneven pressure on the pins, leading to premature wear.

• Lubrication: A tiny drop of light machine oil on the pivot joint once a year will keep the action “buttery smooth” and prevent the metal-on-metal squeaking often associated with old windows.

Quick Specification Table of traditional bulb end casement stay

Feature	Black Antique (Ludlow)	Polished Brass (F&B)	Satin Chrome (Zoo)
Material	Cast Iron	Solid Forged Brass	Solid Forged Brass
Corrosion Resistance	Moderate	Exceptional	High
Aesthetic	Rustic / Farmhouse	Formal / Victorian	Modern / Professional
Durability	Heavy Duty	Elite / Architectural	High-Traffic Grade

6. Creating a Coordinated Suite

To achieve a high-end, “finished” look, it is essential to match your window stays with your casement fasteners. A Traditional Bulb End Fastener should be used on the same window to ensure the handle styles are identical. This attention to detail is what separates a standard renovation from a high-value architectural restoration.

Summary Recommendation: For a truly authentic “Black Antique” look in a cottage setting, the Ludlow Bulb End Stay is the gold standard. For formal properties or coastal homes where rust is a concern, the solid brass options from Fulton & Bray offer the best long-term performance and value.

The traditional bulb end casement stay is a traditional window fitting designed to hold casement windows securely in position. Its classic bulb end detail adds a decorative touch, making traditional bulb end casement stay suitable for period properties, restorations, and homes with heritage-inspired interiors. Built from strong and durable materials, this traditional bulb end casement stay ensures long-lasting performance and smooth operation, offering both practicality and style. Its timeless design blends easily with both traditional and modern décor, providing a versatile solution for window control.

Easy to fit and highly reliable, the traditional bulb end casement stay allows windows to be positioned safely while preventing unwanted movement. Its robust construction resists wear and tear, maintaining its attractive finish over time. Perfect for upgrading existing fittings or adding the finishing touch to new installations, this traditional bulb end casement stay combines strength, durability, and elegance to deliver a professional and dependable window solution.
