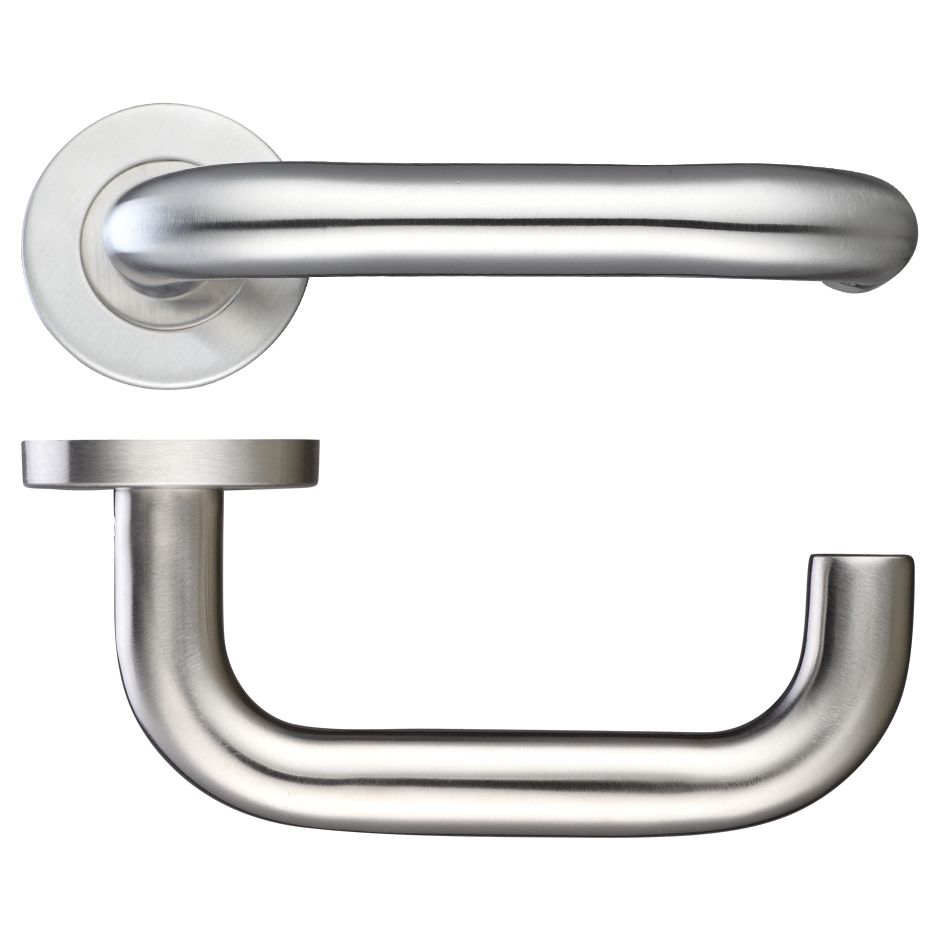

19mm Return to Door Lever Handle Push On Rose 52mm Rose Grade 201 Stainless Steel Fixings Included

The Return to Door Lever Handle, often referred to as a “Safety Lever” or “Berlin Profile,” is an essential component in modern commercial and public architecture. While many door handles focus purely on aesthetics, the Return to Door Lever Handle is rooted in Safety, Accessibility, and Legal Compliance. Characterized by its 90-degree mitred end that curves back toward the door leaf, this handle is the primary specification for hospitals, schools, and high-traffic office environments where preventing accidents is as important as the door’s function.

Top Safety Return Lever Finishes

In professional projects, the Return to Door Lever Handle is typically specified in high-grade stainless steel to ensure it withstands the rigors of thousands of daily operations.

The Architectural Standard: Satin Stainless Steel

The 19mm Return to Door Lever Handle in Satin Stainless Steel is the industry benchmark for commercial and public sectors. The brushed, non-reflective finish is exceptionally effective at hiding fingerprints and resisting the oils of the skin, ensuring the hardware remains pristine even under heavy use.

• Best For: Hospitals, schools, office corridors, and communal apartment blocks.

• Key Detail: Grade 304 construction provides total resistance to corrosion and pitting in humid or high-traffic areas.

The Comprehensive Guide to Return-to-Door Safety Handles

1. The Design Philosophy: Why the “Return” is Critical

The most defining characteristic of the Return to Door Lever Handle is its “Safety Return” profile. Unlike standard T-bar handles that have an open or “pointed” end, the return-to-door lever features a precision-engineered curve that points back toward the door leaf, leaving only a small gap (typically less than 5mm).

• Anti-Snag Functionality: This design is specifically engineered to prevent clothing, bag straps, or equipment (such as medical gurneys or fire hoses) from getting caught on the handle. In a high-traffic or emergency evacuation scenario, an open-ended handle can become a dangerous snag hazard; the safety return eliminates this risk entirely.

• Visual Continuity: From a design perspective, the return-to-door profile creates a “closed loop” look that feels structurally integrated with the door, offering a clean, minimalist Bauhaus aesthetic.

2. Engineering: The Strength of Grade 304 Stainless Steel

In commercial environments, hardware is subject to “Category 3” or “Category 4” use—meaning it must withstand constant, sometimes aggressive operation. The Elite Return-to-Door Lever is typically manufactured from Grade 304 Stainless Steel.

• Structural Durability: Grade 304 offers an exceptional strength-to-weight ratio. It is a dense, hard-wearing metal that will not bend or snap under the pressure of hundreds of daily operations.

• Hygienic Superiority: Because stainless steel is non-porous, it is the gold standard for clinical and medical environments. It can be repeatedly sanitized with harsh chemicals without the metal tarnishing or the finish flaking off.

• Corrosion Resistance: Grade 304 is naturally resistant to oxidization, making it the perfect “fit and forget” solution for interior doors in humid climates or buildings near the coast.

3. Technical Specifications: The 19mm Diameter Standard

The 19mm diameter of the lever is the recognized architectural standard for a secure and comfortable grip.

• Ergonomics: A 19mm tube fits the natural contour of the palm, providing enough surface area to distribute the force of opening a heavy fire door without causing pressure points in the hand.

• Accessibility Compliance: The 19mm diameter provides enough “bulk” to be easily operated by individuals with limited manual dexterity, fulfilling the spirit of inclusive design.

4. Safety and Fire Compliance (BS EN 1634-1 & BS 8300)

The return-to-door lever is more than a decorative choice; it is a high-performance safety component.

• Fire Integrity: The series is fully fire-rated (FD30/60). It has been tested to ensure the handle remains operational and the lock shielded during 30 to 60 minutes of extreme heat exposure.

• Equality Act & BS 8300: This handle is frequently specified to meet the requirements of BS 8300 and Approved Document M. These regulations ensure that hardware is easy to operate and that the handle end cannot catch on loose clothing, which is particularly important for wheelchair users or those using walking aids.

5. Technical Specifications Comparison of Return to Door Lever Handle

6. Professional Installation: The Concealed-Fix Rose

The return-to-door lever is designed for a seamless, architectural finish. It features a two-part concealed-fix rose.

• Clean Aesthetics: The inner sub-plate is screwed directly into the door. A matching stainless steel “rose” cover is then snapped or screwed over the top, hiding all mounting screws.

• The Bolt-Through Fit: For maximum longevity in commercial settings, always use bolt-through fixings. These pass through the door and the lock case to screw the two handles together. This “sandwich” effect ensures the handles never wobble or pull loose from the door leaf, even after decades of use.

7. Maintenance and Longevity

Because it is manufactured from high-grade stainless steel, this handle requires very little maintenance:

• Routine Cleaning: A quick wipe with a soft microfiber cloth and mild soapy water once a month will remove fingerprints and airborne dust.

• Mechanical Care: Once a year, a tiny drop of light machine oil on the internal return spring (located behind the rose) will ensure the handle action remains silent and perfectly horizontal.

• Avoid Abrasives: Never use bleach, steel wool, or abrasive scouring pads, as these will scratch the precision-brushed satin grain of the finish.

 For architects, developers, and facility managers who require a handle that balances modern minimalist style with the highest safety standards, the 19mm Return to Door Lever Handle is the definitive specification. Its safety return design and Grade 304 construction make it a durable, compliant, and stylish choice for any high-traffic project.

This 19mm Return to Door Lever Handle with a 52mm push on rose is crafted from Grade 201 stainless steel, offering excellent durability and resistance to corrosion. The satin finish provides a sleek, modern look, while the ergonomic return-to-door design ensures comfortable and efficient operation. The push on rose fitting allows for quick, secure installation, giving doors a neat and professional finish.

Ideal for both residential and commercial use, this Return to Door Lever Handle combines strength, style, and functionality. The robust stainless steel construction guarantees long-lasting performance, while the 52mm rose delivers a clean, flush fit. Perfect for modern interiors, this Return to Door Lever Handle enhances both door aesthetics and usability.
