Radius Cover Plate for 19mm and 22mm RTD Lever on Backplate DIN Euro Profile 72mm Centres

radius din euro backplate 72mm for rtd lever is the definitive choice for professional architectural environments. In high-traffic commercial sectors—such as healthcare, education, and government infrastructure—hardware must do more than just operate; it must meet rigorous European safety standards (DIN 18251) and accessibility mandates.

The combination of the 72mm DIN center and a Radius (curved) profile creates a hardware solution that is mechanically superior, fire-safety compliant, and optimized for snag-free movement in emergency exit routes.

While residential doors often utilize 48mm or 57mm centers, the radius din euro backplate 72mm for rtd lever is the global benchmark for heavy-duty commercial mortice locks. This specific measurement (PZ) refers to the distance between the center of the lever spindle and the center of the rounded part of the Euro cylinder.

• Mechanical Advantage: The 72mm spread allows for a larger internal lock case, which houses heavy-duty springing and more robust deadbolt mechanisms. This is essential for doors that experience hundreds of operations per day.

• Safety and Snag Prevention: In a hospital or school corridor, sharp corners are a hazard. The Radius design removes 90-degree angles from the backplate. When paired with an RTD (Return-To-Door) lever, the hardware presents a smooth, curved surface that prevents medical straps, bags, or loose clothing from catching—a critical requirement of BS 8300 and DDA guidelines.

• Multi-Bore Engineering: These plates are designed to be truly universal, featuring a precision-machined bore that accommodates both 19mm (Standard) and 22mm (Enhanced Grip) lever necks. This allows facility managers to maintain a uniform aesthetic while varying the lever diameter based on the specific accessibility needs of a room.

Structural Durability & Fire Safety

In commercial settings, these radius din euro backplate 72mm for rtd lever are a vital component of a certified fire door assembly (FD30/FD60). They are designed to maintain the integrity of the door while ensuring the latch remains operable under extreme heat.

1. Grade 304 Stainless Steel: This material is selected for its high melting point and exceptional resistance to the corrosive chemical cleaners used in clinical environments. It is naturally antimicrobial and maintains its brushed finish even in humid or high-contact areas.

2. The Two-Part Fixing System: * Sub-Chassis: A structural steel plate is bolted through the door and the lock case itself. These “bolt-through” fixings ensure the handle can never be pulled off the door, even under high stress or attempted vandalism.

   • Snap-On Radius Cover: The decorative plate is friction-fitted over the sub-chassis. This conceals all screws, creating a tamper-proof finish that prevents unauthorized personnel from removing the hardware.

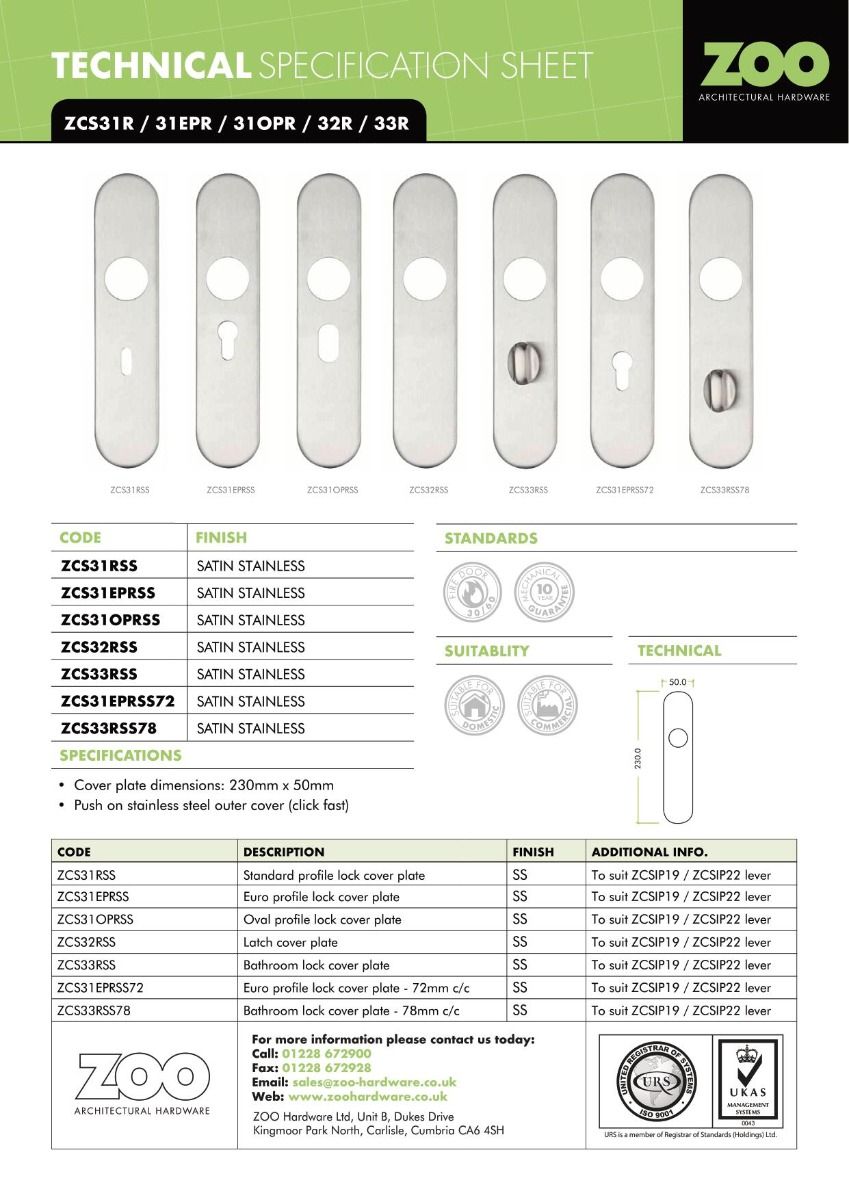

Technical Specifications of radius din euro backplate 72mm for rtd lever

Recommended Commercial Hardware

For healthcare and education facilities, the is the industry standard. Its high-grade steel construction and 72mm centers ensure it withstands 24/7 use while meeting all local building regulations.

Satin Stainless Radius 72mm Plate

For modern offices requiring a high-contrast aesthetic, the offers a sophisticated look without sacrificing durability. The powder-coated finish is engineered to be fingerprint-resistant and exceptionally long-lasting.

Matte Black Radius 72mm Plate

Installation Pro-Tip: The “Alignment Check”

Because the radius din euro backplate 72mm for rtd lever is used on heavy fire doors, precision during installation is non-negotiable.

1. Loosely mount the sub-chassis to the door.

2. Slide the Euro Profile Cylinder through the lock and the plate before tightening the fixings.

3. If the cylinder feels tight or the key is hard to turn, the backplate is misaligned.

4. Once the cylinder turns perfectly, tighten the bolts and snap the radius cover on. This prevents “binding” that can lead to lock failure during an emergency.

This radius din euro backplate 72mm for rtd lever is designed for 19mm and 22mm RTD levers on a backplate with a DIN Euro profile cut-out and 72mm centres. Made from high-quality, durable materials, it provides a reliable solution for refurbishing or replacing door hardware while delivering a neat and professional finish. The radius design adds a subtle, modern touch while ensuring precise compatibility with standard DIN Euro profile lever and backplate fittings.

Ideal for residential and commercial doors, this radius din euro backplate 72mm for rtd lever is simple to install and helps protect your hardware while enhancing the overall aesthetic. Combining durability, functionality, and a sleek radius design, the radius din euro backplate 72mm for rtd lever is a dependable choice for maintaining stylish and smooth door operation.
