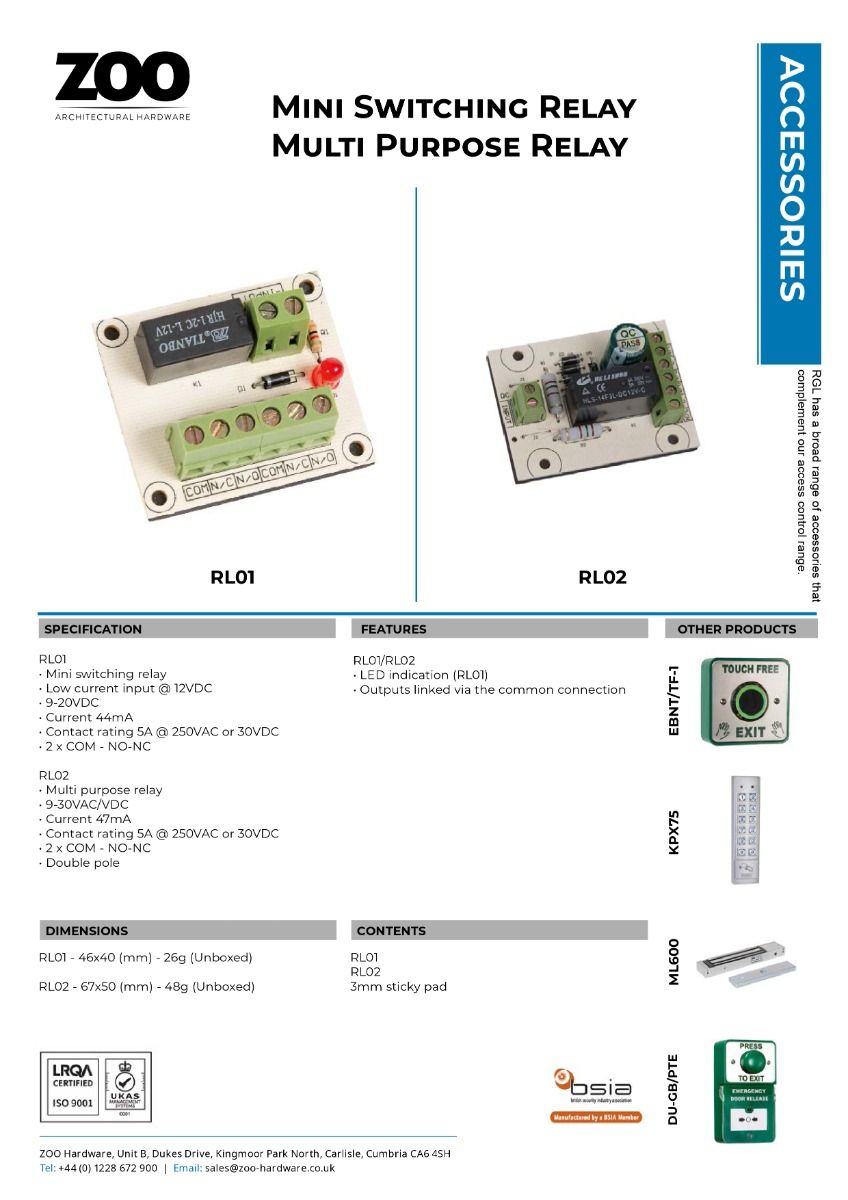

Multi Purpose Relay Board – 67 x 50mm – 9-30VAC/VDC

In the rapidly evolving landscape of electronics and automation, the multi purpose relay board serves as a rugged, reliable translator. It allows low-voltage microcontrollers—such as an Arduino or Raspberry Pi—to safely switch heavy-duty appliances like motors, solenoid valves, and lighting arrays. Unlike basic mechanical switches, a multi purpose relay board is designed for high-frequency use and long-term stability, featuring on-board signal conditioning to ensure clean, bounce-free switching.

By integrating a multi purpose relay board into your system, you create a vital safety barrier. The primary benefit of the multi purpose relay board is its ability to provide galvanic isolation, ensuring that high-voltage spikes from the load side never reach your sensitive control processor. This makes it a “multi-purpose” essential for everything from agricultural irrigation timers to complex industrial sequence controllers.

Why the Multi Purpose Relay Board is an Automation Staple

The true strength of the multi purpose relay board lies in its adaptability. It is built to interface with almost any logic level while providing standardized outputs for global power requirements.

• Optocoupler Isolation: Every channel on our multi purpose relay board is optically isolated to prevent electromagnetic interference (EMI) from crashing your software.

• Selectable Trigger Logic: Most multi purpose relay boards feature a jumper-selectable “High/Low” trigger, making them compatible with both NPN and PNP outputs.

• High-Current Contact Ratings: Despite its compact footprint, the multi purpose relay board can switch loads up to 10A at 250V AC or 30V DC.

• SPDT Configuration: Each relay provides a Common (COM), Normally Open (NO), and Normally Closed (NC) contact for maximum wiring flexibility.

• Diagnostic LED Indicators: Real-time visual feedback on the multi purpose relay board allows for instant troubleshooting of the control signal.

• Expandable Channel Options: Available in single-channel modules for simple tasks or 8-channel arrays for complex automation racks.

• Vibration-Resistant Terminals: Heavy-duty screw terminals on the multi purpose relay board ensure secure connections for 14-22 AWG wiring.

Technical Specifications

Professional Integration and Safety

When deploying a multi-purpose relay board in a permanent installation, it is best practice to use a separate power source for the relay coils. By removing the “VCC-JDVCC” jumper on the multi-purpose relay board, you can power the electromagnet from a dedicated 5V/12V rail, completely separating the power grounds from your microcontroller. This prevents “reset loops” caused by the inductive kickback of the relay coil.

Whether you are building a custom home-theater controller or an automated greenhouse, the multi-purpose relay board provides the robust, industrial-grade switching you need. Its “fit and forget” reliability makes it the preferred choice for developers who demand high performance in a cost-effective package.

The Multi Purpose Relay Board – 9-30VAC/VDC – 67 x 50mm is a versatile and reliable solution designed to handle a wide range of electrical switching applications. Supporting both AC and DC input voltages from 9 to 30V, this relay board provides flexibility for various projects, from home automation to industrial control systems. Its compact dimensions of 67 x 50mm make it ideal for integration into small control panels, electronic enclosures, and DIY setups, while maintaining robust performance. Built for durability and precision, it ensures stable operation, making it suitable for hobbyists, engineers, and automation enthusiasts who demand consistent results in their circuits.

This multi-purpose relay board allows seamless interfacing with microcontrollers, including Arduino, Raspberry Pi, and other development boards, enabling the control of external devices such as lights, motors, fans, and alarms. Its low power requirements and efficient switching minimize energy consumption while maintaining reliable operation. Perfect for custom electronics, automation projects, or industrial prototyping, this board combines convenience, flexibility, and performance, giving users a dependable solution for virtually any low to medium voltage control application.
