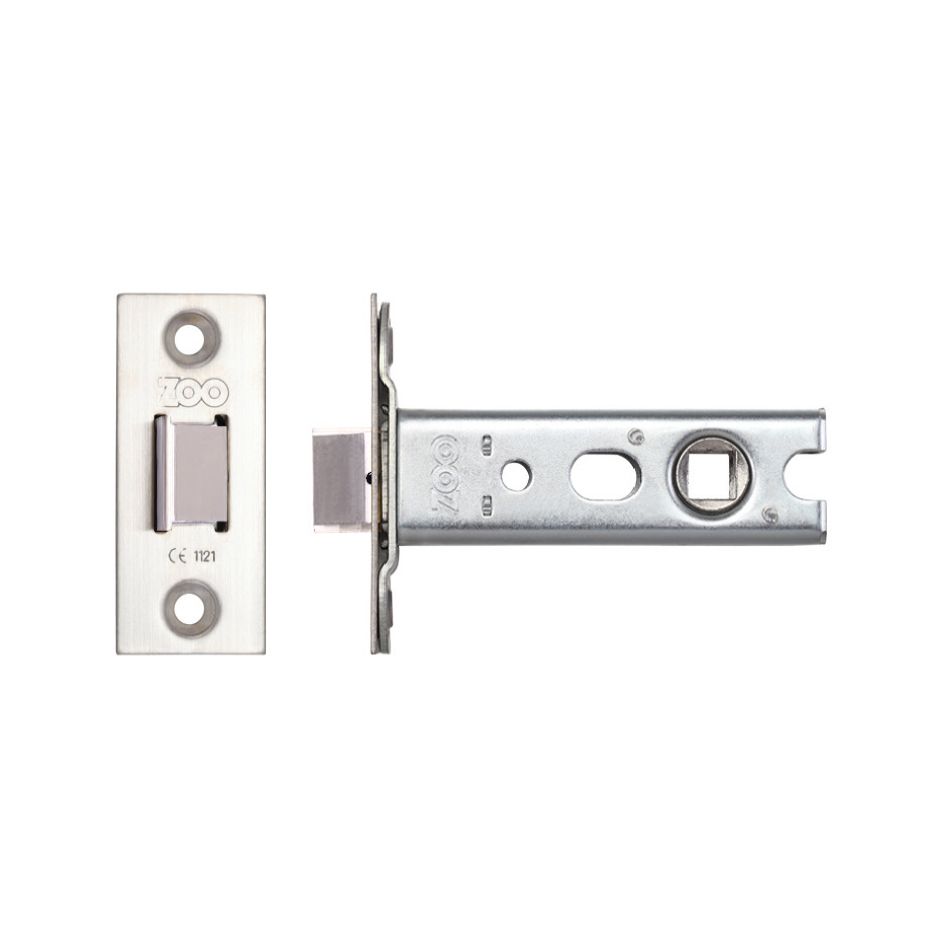

Tubular Latch Heavy Duty Internal Door Latch Strong Durable Hardware Smooth Reliable Operation

In professional ironmongery, the latch is the “engine” of the door. While standard domestic latches often fail under the weight of solid brass or stone knobs, the Heavy Duty Architectural Tubular Latch is built to withstand constant use in both premium residential and commercial environments. The core of this latch is a high-tensile coil spring, specifically calibrated to provide a firm, tactile return, ensuring your handles always sit perfectly horizontal.

Housed in a robust, zinc-plated steel casing with a Grade 304 Satin Stainless Steel (SSS) forend, this latch offers a superior level of finish that resists scratching and corrosion. Whether you are outfitting a busy modern office or a luxury heritage renovation, this strong, durable hardware provides the mechanical integrity required for a truly high-end architectural finish.

Why the Heavy Duty Latch is the Professional Choice

• Reinforced Spring Mechanism: Designed with a heavy-gauge internal spring that can support the weight of heavy mortice knobs without drooping or “losing its snap.”

• Precision Guided Latch Bolt: Features a solid, profiled bolt that is guided within the barrel to reduce friction, resulting in a smooth, reliable operation and a whisper-quiet close.

• Bolt-Through Fixing Points: The latch case is pierced to allow “male-to-female” bolt-through fixings to pass directly through the mechanism, clamping your door furniture securely to the timber.

• Double-Sprung Follower: The 8mm spindle follower is double-sprung to ensure a balanced feel when turning the handle in either direction.

• Fire-Rated Certification: Many architectural-grade latches are tested for use on 30/60-minute fire doors (FD30/FD60), making them suitable for commercial escape routes and apartment entrances.

• Available in Multiple Backsets: Typically offered in 64mm (2.5″) and 76mm (3″) case lengths to suit both narrow and wide door stiles.

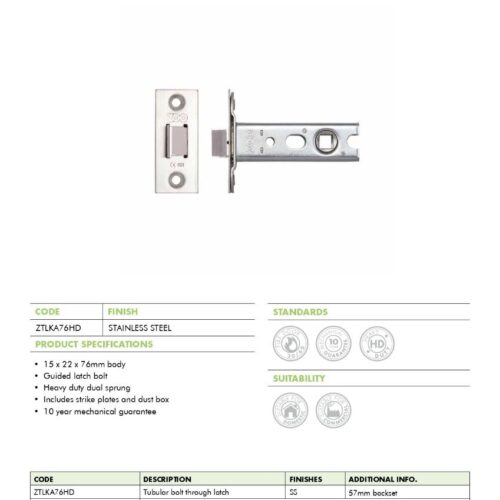

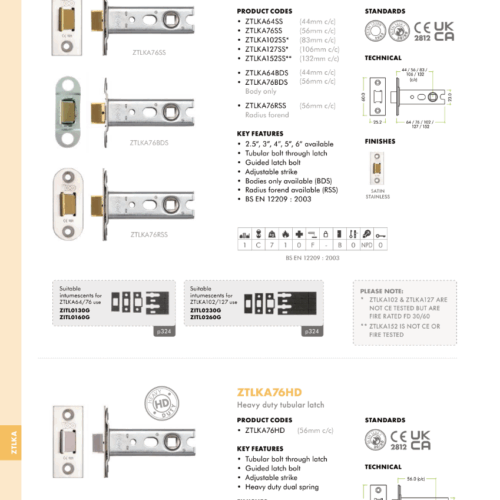

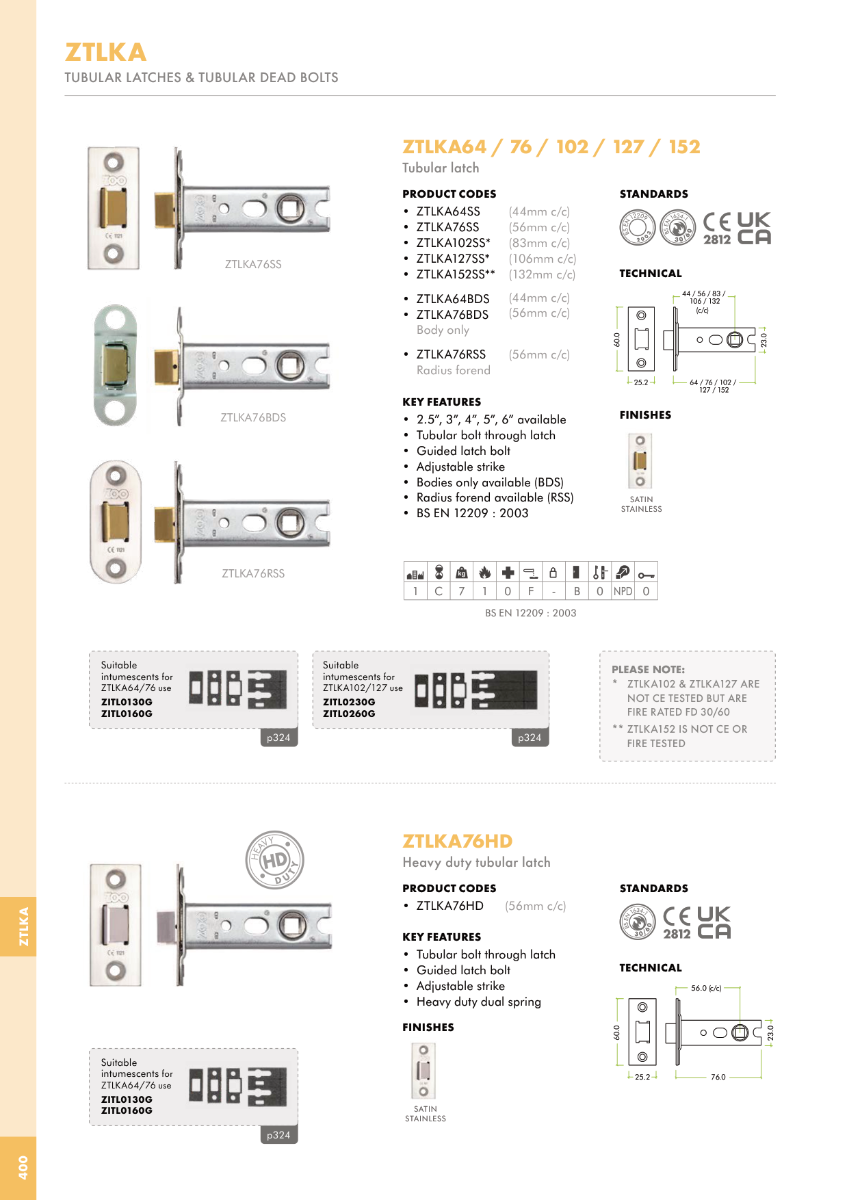

Technical Specifications of Heavy Duty Architectural Tubular Latch

Professional Installation for Maximum Durability

To ensure your Heavy Duty Architectural Tubular Latch performs at its peak for decades, follow these professional fitting guidelines:

1. Precision Boring: Use a 25mm flat bit to bore the latch hole. Ensure the drill remains perfectly level; any misalignment will cause the spindle to bind, creating a “notchy” feel when turning the handle.

2. Clear the Mortice: Before inserting the latch, use a vacuum or a blast of air to remove all sawdust from the hole. Debris inside the latch mechanism is the number one cause of premature failure.

3. Correct Backset Alignment: Measure twice before drilling for the spindle. If the hole is off-center by even 1mm, the handle rose will struggle to sit flush, putting unnecessary lateral stress on the latch follower.

4. Recess the Strike Plate: For a seamless close, the strike plate must be recessed flush into the frame. Ensure the “dust box” or cavity behind the plate is deep enough for the bolt to extend fully and “click” home.

5. Bi-Annual Maintenance: Wipe the faceplate with a clean cloth and apply a small amount of dry PTFE lubricant (not oil or WD-40) to the latch bolt every 12 months to maintain the low-friction architectural glide.

The Foundation of a “High-End” Door

A Heavy Duty Architectural Tubular Latch is the invisible detail that defines the quality of a room. It turns a basic functional movement into a satisfying, high-end experience. By choosing a reinforced, architectural-grade latch, you are ensuring that your doors remain easy to operate, secure, and perfectly aligned, year after year.

This Heavy Duty Architectural Tubular Latch is designed to provide strong, reliable and long-lasting performance for internal doors in both residential and commercial spaces. Engineered for smooth operation, it ensures secure and efficient functionality, making it an excellent choice for doors fitted with lever handles or knobs. The robust construction delivers durability, ensuring the Heavy Duty Architectural Tubular Latch withstands frequent daily use without compromising on performance.

Crafted from high-quality materials, this Heavy Duty Architectural Tubular Latch combines strength with a sleek, professional finish, making it suitable for new installations as well as replacement projects. Easy to fit and complete with all fixings, it offers a straightforward installation while providing dependable functionality. Whether used in homes, offices, or public buildings, this Heavy Duty Architectural Tubular Latch delivers the perfect balance of strength, durability and smooth operation.
