Dust Socket for Flush Bolts – Concrete

Standard holes drilled into concrete for door bolts quickly become clogged with dirt, stones, and cleaning debris, preventing the bolt from fully engaging and compromising security. The concrete dust socket for flush bolts solves this issue with an ingenious spring-loaded plunger. When the bolt is retracted, the internal plate rises to sit flush with the floor surface, sealing the hole. When the bolt is engaged, it pushes the plunger down, allowing for deep, secure penetration into the substrate.

Designed for high-traffic commercial entries and residential folding doors, the concrete dust socket for flush bolts is typically manufactured from heavy-duty brass or stainless steel. This ensures it can withstand the constant pressure of foot traffic and heavy wheeled trolleys without deforming. By installing a concrete dust socket, you ensure that your secondary door leaf remains immovably locked every time, regardless of how often the floor is swept or mopped.

Why a Dust-Sized Socket is Vital for Floor-Mounted Bolts

The concrete dust socket for flush bolts is more than just a hole-liner; it is a maintenance-saving security upgrade.

• Spring-Loaded Debris Shield: The concrete dust socket for flush bolts features a plunger that automatically ejects dust and dirt, ensuring a clear path for the bolt.



• Tapered Internal Bore: Designed to guide the flush bolt into the center of the socket, compensating for minor door sag or misalignment.

• Corrosion-Resistant Build: Forged from solid brass or Grade 304 stainless steel to prevent rusting in damp concrete or during floor mopping.

• Flush-Floor Aesthetic: Once installed, the concrete dust socket for flush bolts sits level with the floor, eliminating trip hazards and providing a sleek, architectural finish.

• Universal Bolt Compatibility: Sized to accommodate standard 10mm, 12mm, and 15mm diameter flush bolts and shoot bolts.

• Deep Anchoring Design: The long barrel of the concrete dust socket for flush bolts provides maximum lateral resistance against forced entry or wind pressure.

• Architectural Finishes: Available in Satin Chrome, Polished Brass, and Matte Black to coordinate with the door’s threshold and hardware.

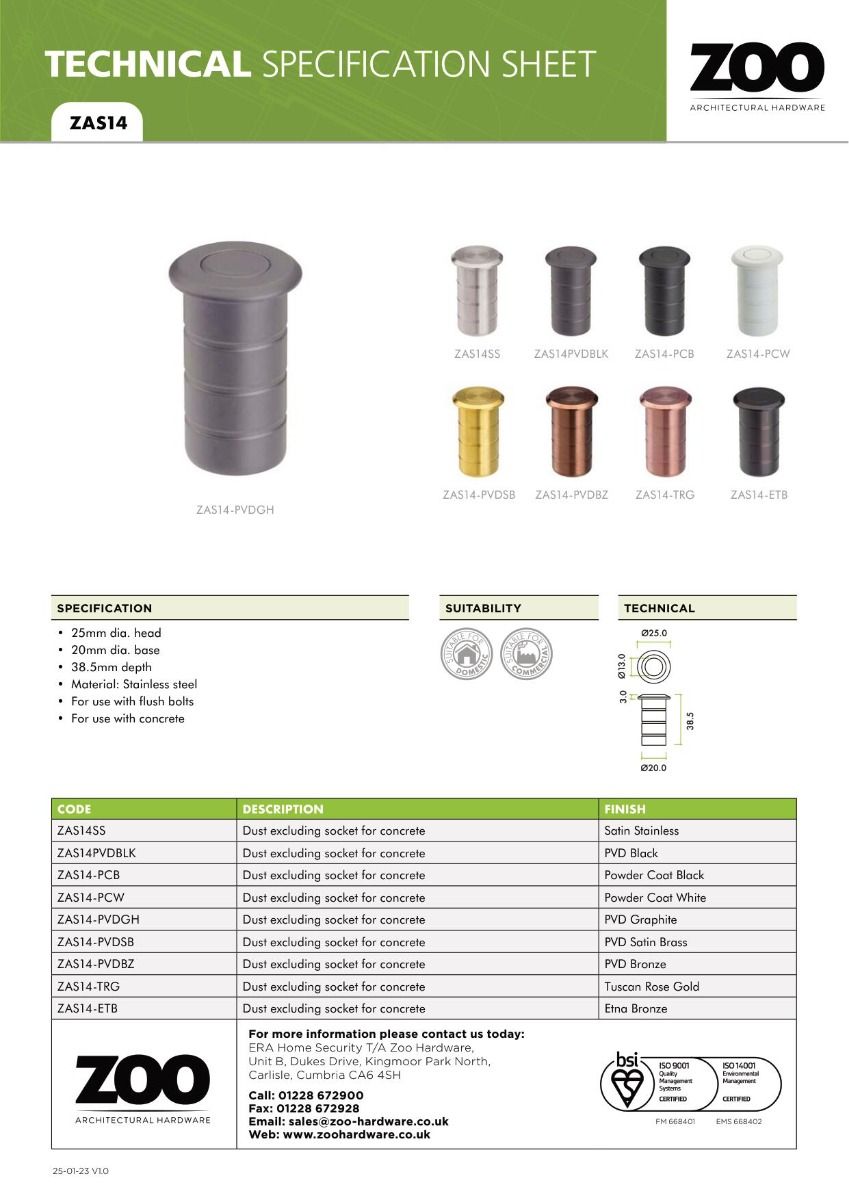

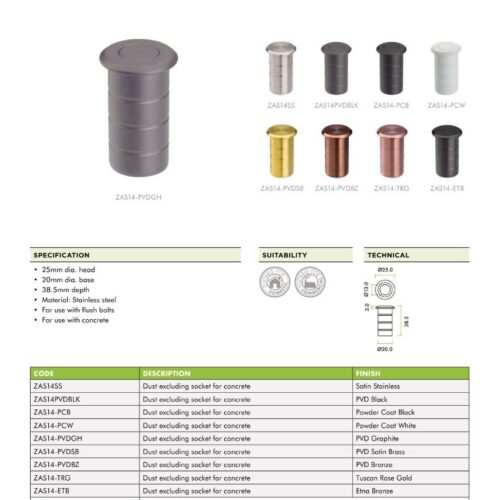

Technical Specifications

Achieving a High-Precision Floor Installation

When installing a concrete dust socket for flush bolts, the most critical step is the “core drill.” We recommend using a diamond-tipped masonry bit slightly larger than the socket barrel to allow for a small amount of “play” during final alignment. Once the door is hung and the bolt position is marked, the concrete dust socket for flush bolts should be set into the floor using a high-strength two-part epoxy resin or industrial construction adhesive.

For a perfect finish, ensure the top flange of the concrete dust socket for flush bolts is slightly countersunk into the floor surface. This prevents the “lip” from catching on mops or vacuum cleaners. If you are installing into a timber floor over concrete, choose a socket with a wider flange to hide the transition between the wood and the subfloor. Secure your door’s foundation with a concrete dust socket for flush bolts—the definitive choice for a clean, reliable, and secure entryway.

This dust socket is designed to work with flush bolts fitted into concrete floors, offering both strength and reliability. It provides a safe housing for the flush bolt, allowing it to sit securely without causing wear or damage to the surface. By holding the bolt in place, it improves the stability of the door and ensures smooth everyday use. The sturdy material gives it long-lasting durability, so once fitted, it will continue to perform well over time. It is especially useful in keeping the flush bolt aligned, which is important for heavy or frequently used doors.

Another advantage of this dust socket is its ability to keep dust, dirt, and small debris out of the mechanism. This not only helps the flush bolt move more freely but also reduces the chances of jamming or extra maintenance. Its simple design makes it easy to install and suitable for a range of applications, including both residential and commercial settings. Whether used in homes, offices, or larger buildings, it offers a practical solution for anyone who wants dependable performance with a clean finish.
