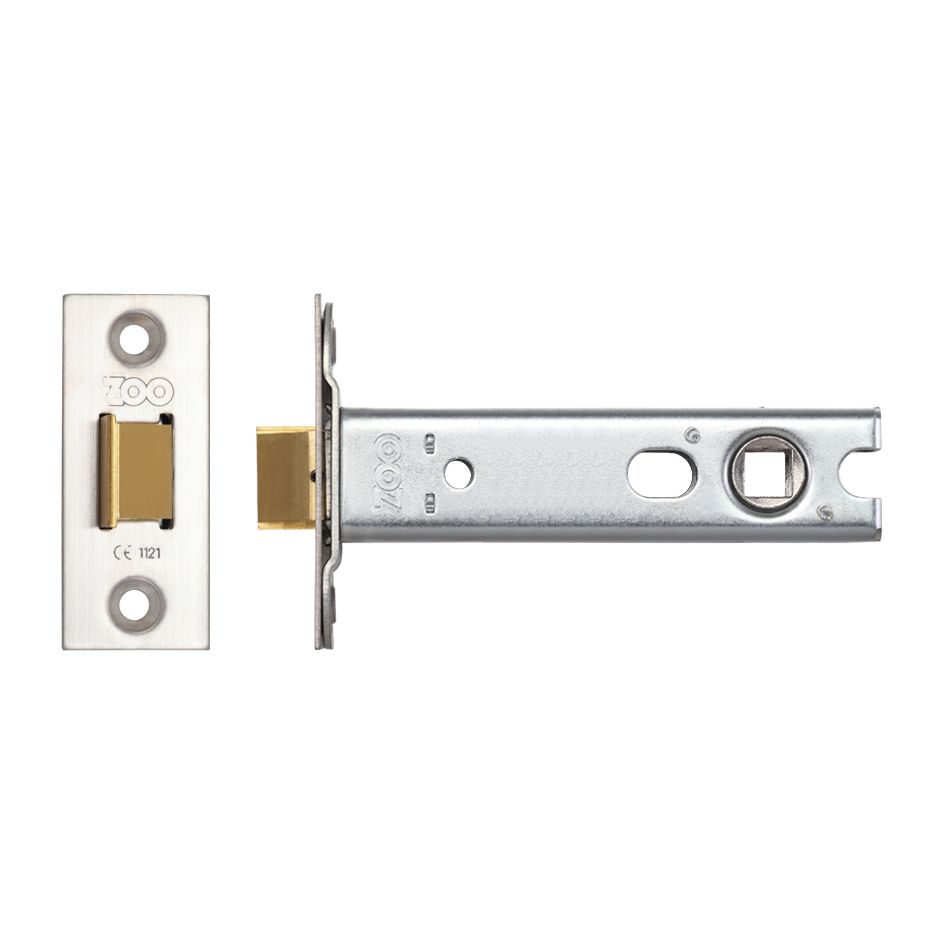

Tubular Latch (Knobs) Architectural 45° Travel 102mm with SSS Forend Durable Internal Door Latch Smooth Operation

Standard tubular latches are designed for lever handles, which provide natural leverage and usually require a 60° to 90° turn to retract the bolt. When you apply that same logic to a round knob, the result is a stiff, difficult-to-turn door.

The architectural tubular latch for knobs is the professional solution. It features a high-ratio internal cam that fully retracts the latch bolt with only a 45-degree turn. This “soft-spring” technology allows you to open the door with a flick of the wrist, providing a premium, tactile feel. Furthermore, these architectural tubular latch for knobs are typically available in longer lengths (76mm, 102mm, or 127mm) to provide a deeper backset, ensuring your knuckles don’t hit the door frame when gripping the knob.

Key Features of the Architectural Knob Latch

• 45° Short-Travel Mechanism: Specifically designed for the ergonomics of a round knob, requiring half the rotation of a standard latch.

• Heavy-Duty Springing: Equipped with a reinforced “follower” spring that can support the weight of heavy solid brass, crystal, or stone knobs without sagging.

• Deep Backset Options: Available in extended lengths to position the knob further from the door edge, providing essential hand clearance.

• Bolt-Through Housing: The casing is pierced to accept bolt-through fixings, ensuring your knob roses are pulled tight against each other through the door for a “rock-solid” fit.

• Grade 304 Stainless Steel Forend: Features a premium Satin Stainless Steel (SSS) finish that is scratch-resistant and fire-rated for both residential and commercial use.

• Silent Guided Bolt: The architectural tubular latch for knobs is precision-profiled to reduce “clatter” and friction against the strike plate, resulting in a whisper-quiet close.

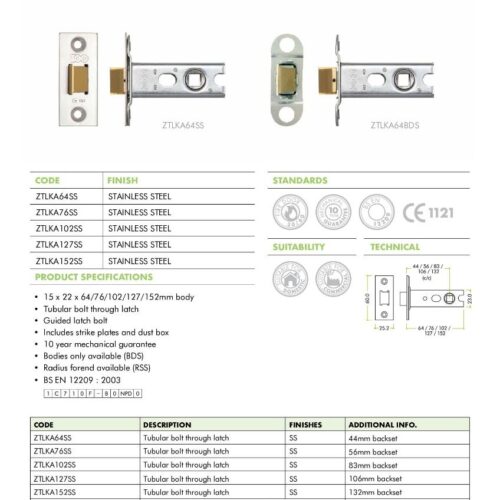

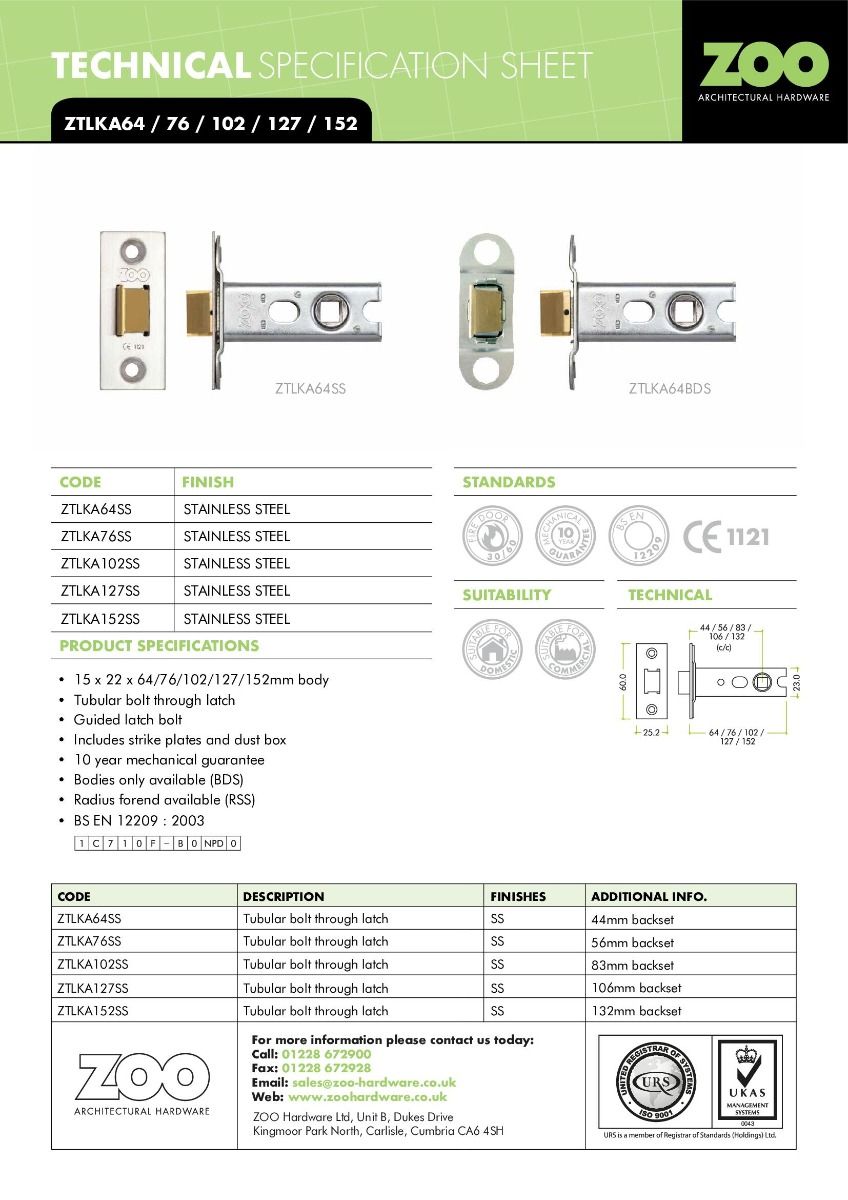

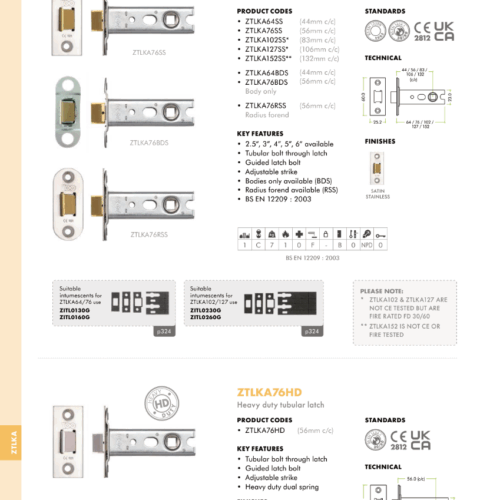

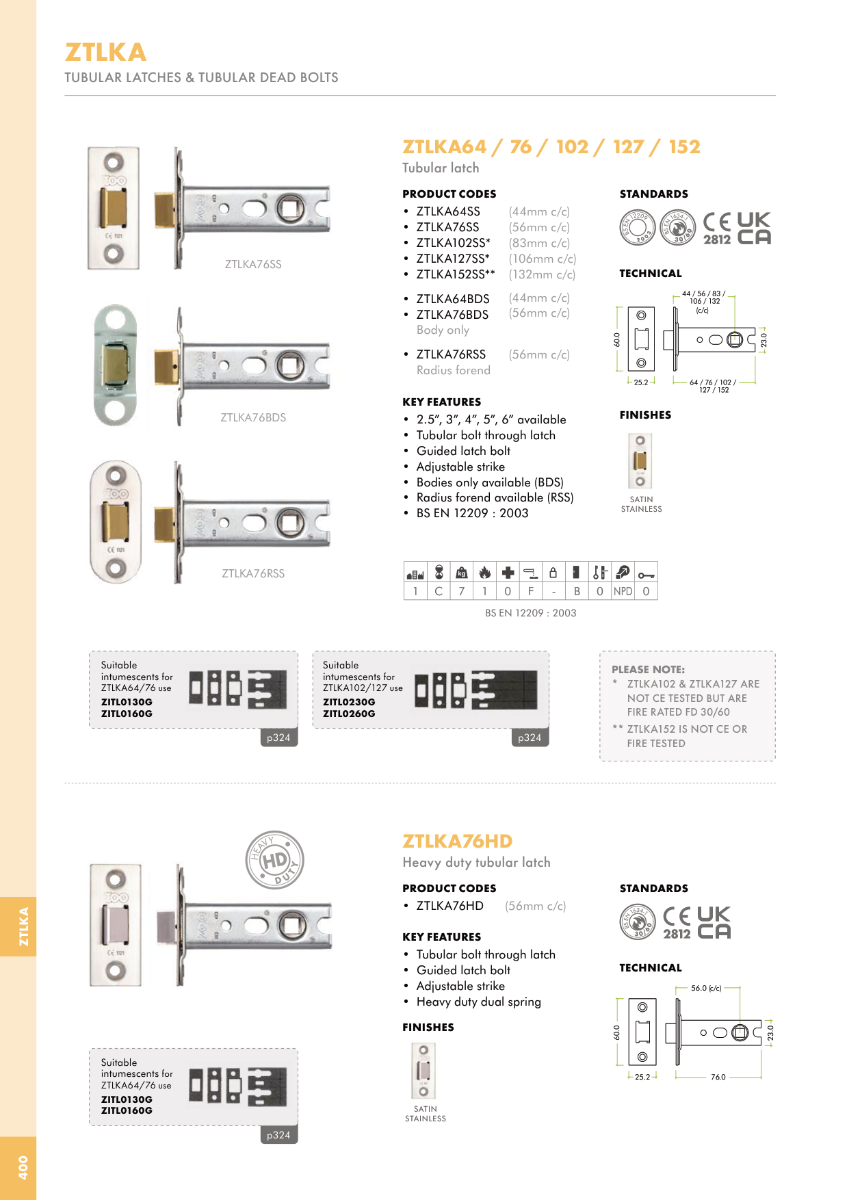

Technical Specifications of architectural tubular latch for knobs

Professional Installation Advice for architectural tubular latch for knobs

1. Choose the Right Length: For a standard door, a 76mm latch is common. However, if you have wide stiles or are using large knobs, upgrade to a 102mm or 127mm latch to ensure the knob sits centrally on the timber and away from the frame.

2. Avoid Binding: Ensure your 25mm bore hole is perfectly straight. If the latch is slightly angled, the spindle will bind against the 45° follower, making the knob feel “crunchy” or stiff.

3. Use the Bolt-Through Fixings: Do not rely on wood screws alone to hold heavy knobs. Use the bolt-through holes in the architectural latch to “sandwich” the knobs together through the door.

4. Strike Plate Depth: Mortice the strike plate flush into the frame. Ensure the pocket behind the plate is deep enough to allow the bolt to fully “click” home, which releases the tension on the internal spring.

5. Dry Lubrication: Every 12 months, apply a quick spray of dry PTFE to the bolt face. Avoid wet oils like WD-40, which can attract dust inside the delicate 45° mechanism.

The Foundation of a “High-End” Door

An Architectural Tubular Latch for Knobs is the invisible upgrade that defines how a room feels. It turns a basic functional movement into a smooth, satisfying interaction. By matching your premium mortice knobs with a dedicated 45-degree latch, you are ensuring your hardware works with the precision it was designed for.

This architectural tubular latch for knobs, featuring a 45° travel and 102mm backset, is designed to ensure smooth, reliable, and precise door operation. Complete with a satin stainless steel (SSS) forend, architectural tubular latch for knobs provides a sleek and professional finish suitable for residential and commercial doors. The 102mm backset allows for ergonomic handle placement and improved compatibility with a variety of door designs, offering both functionality and aesthetic appeal.

Manufactured from high-quality, durable materials, this architectural tubular latch for knobs is built to withstand frequent use, ensuring long-lasting performance and consistent operation. Its 45° travel mechanism delivers effortless action, reducing wear on door knobs and providing a smooth user experience. Easy to install with all fixings included, architectural tubular latch for knobs offers a practical and reliable solution for architects, builders, and homeowners seeking a durable, efficient, and stylish internal door latch.
