Architectural Heavy Barrel Bolt – 300mm x 50mm

In the world of ironmongery, “Architectural” signifies a higher tier of performance. The Architectural Heavy Barrel Bolt is manufactured from Grade 304 Stainless Steel (SS304), providing a naturally rust-proof and corrosion-resistant body. Its primary feature is the oversized, solid-core shoot, which provides significant shear strength—essential for securing heavy timber doors, industrial gates, or plant room entries.

Available in a wide range of lengths (from 100mm to over 900mm), these Architectural Heavy Barrel Bolt are designed to perform in the most demanding environments. Whether you are outfitting a high-traffic office or a luxury coastal home, the Satin Stainless Steel (SSS) finish provides a clean, modern aesthetic that remains untarnished by environmental pollutants or frequent use.

Why the Architectural Heavy Barrel Bolt is the Professional Choice

• Oversized Shoot Diameter: Typically featuring a 12mm to 19mm solid bolt, providing a massive physical barrier against kick-in attacks or high wind pressure.

• High-Grade SS304 Construction: Offers maximum durability and fire-resistance, making it suitable for both internal fire doors and external perimeter gates.

• Precision Glide Action: The internal barrel is machined to tight tolerances, ensuring a smooth, “silk-like” slide without the rattling or sticking found in cheaper pressed-steel versions.

• Ergonomic Heavy-Duty Grip: The oversized knob provides excellent leverage, allowing for easy operation even when wearing gloves or if the door has slightly settled.

• Multiple Strike Options: Supplied with various sockets—including flat plates, angle strikes, and floor-mounted “bridge” sockets—to accommodate any frame or threshold configuration.

• Concealed Fixings (Selected Models): Some architectural versions feature hidden screw holes for a sleek, tamper-proof appearance.

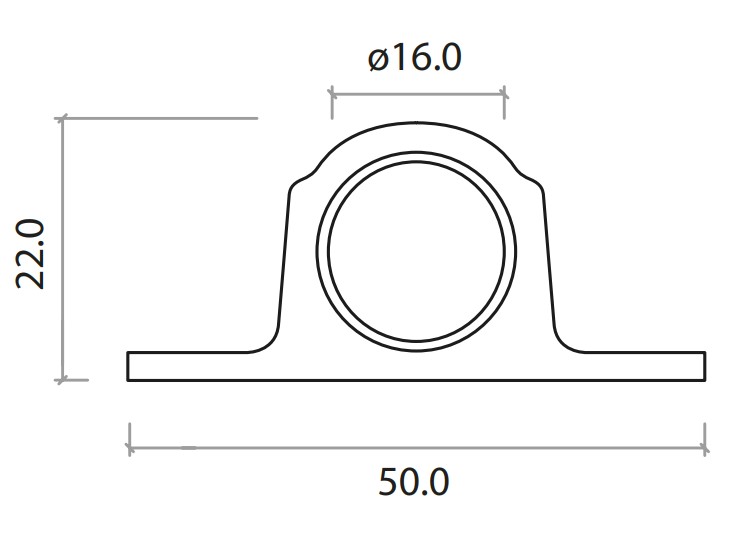

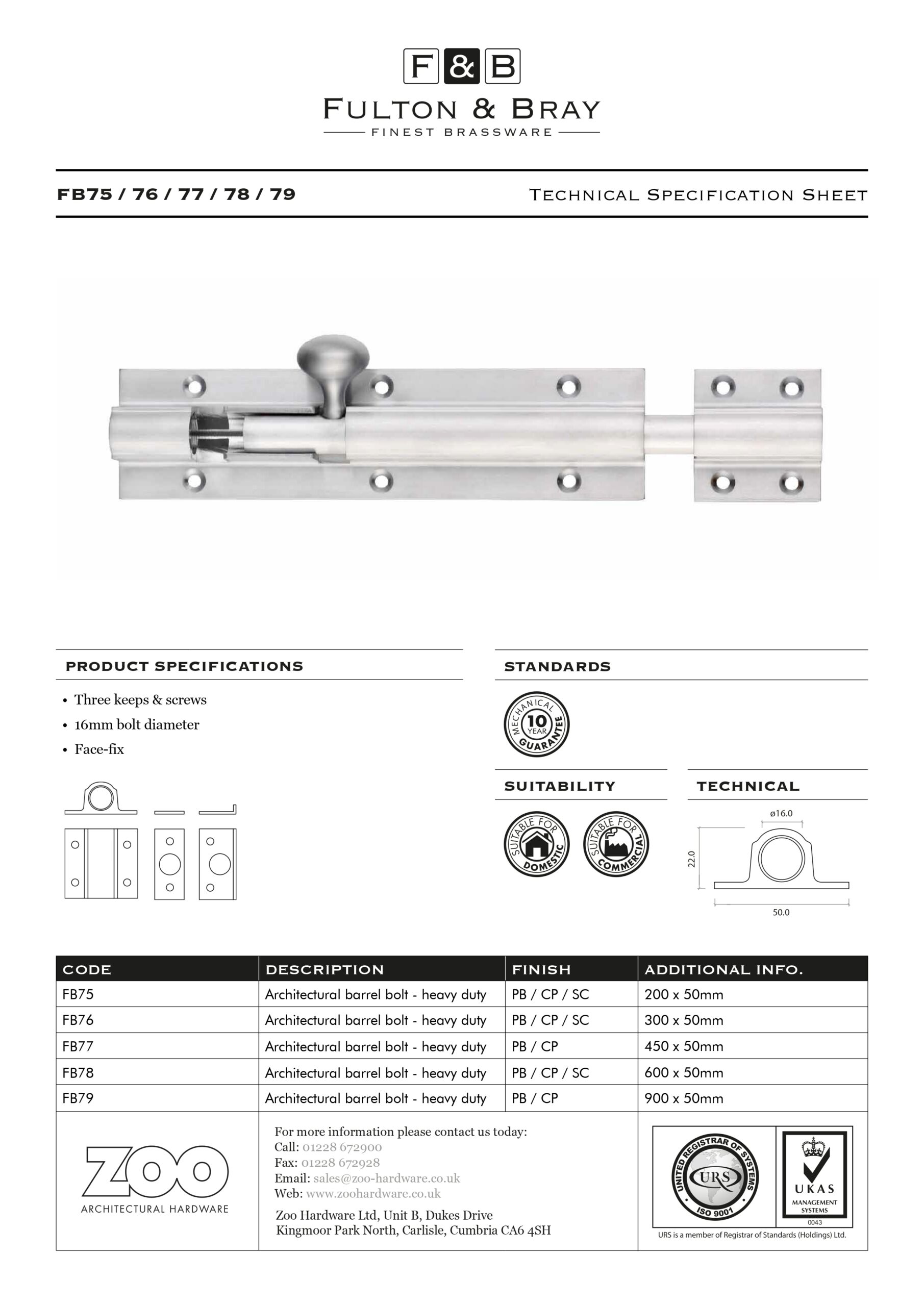

Technical Specifications of Architectural Heavy Barrel Bolt

Professional Installation and Maintenance Tips

A Architectural Heavy Barrel Bolt is only as secure as its installation. Follow these steps for a professional finish:

1. Alignment is Critical: Use a spirit level to ensure the bolt is perfectly horizontal (or vertical). Because the architectural shoot fits tightly within the barrel guides, even a minor tilt can cause the mechanism to bind.

2. Structural Depth: When fitting to the frame, ensure the strike plate or floor socket is recessed deeply enough into the structural timber or masonry. A bolt is only a deterrent if the frame can support the load.

3. Pilot Hole Preparation: Architectural stainless steel screws are incredibly strong but can snap if driven directly into hardwoods like Oak or Iroko. Always drill a pilot hole 75% of the screw’s diameter first.



4. Seasonal Adjustment: Leave 1mm to 2mm of “play” in the locked position. Timber doors expand in humid weather; a hyper-tight fit may become impossible to unlock during the summer months.



5. Dry Lubrication: To maintain the “premium feel,” apply a quick puff of graphite powder or a dry PTFE spray into the barrel once a year. Avoid greases or oils, as they attract dust and grit which can score the polished stainless finish.

The Ultimate Deterrent for High-End Security

The Architectural Heavy Barrel Bolt is more than just a fastener; it is a statement of security. It provides the visual and physical reassurance of “over-engineered” hardware. By selecting an SS304 heavy bolt, you are ensuring that your doors remain perfectly aligned and securely locked against the elements and intruders alike.

Enhance the security of your doors and gates with this Architectural Heavy Barrel Bolt 300mm x 50mm, engineered for strength and long-lasting performance. Made from premium materials, this bolt provides a smooth and reliable locking mechanism while offering a sleek architectural design. Perfect for residential and commercial doors, shutters, and gates, it combines functionality with durability to give you peace of mind.

Installation is simple and straightforward, suitable for both professional use and DIY projects. The heavy-duty construction ensures that this Architectural Heavy Barrel Bolt withstands regular wear and tear, offering dependable security for years to come. Its robust build and elegant design make it an ideal addition to any door hardware setup, providing both strength and style.
