Anti Ligature Pull Handle on Backplate Stainless Steel Safety Door Handle Fixings Included

In the specialized field of behavioral health architecture, the Anti Ligature Pull Handle on Backplate is a critical life-safety component. Standard door handles often present “loop” or “hook” points that can be exploited for self-harm. This hardware solves that risk through a specialized, solid-style construction. The pull handle features a tapered, “elephant ear” or sloped-top profile, ensuring that any cord, clothing, or material placed over it slides off immediately under tension.

The addition of the Backplate (typically measuring 300mm x 100mm or larger) serves a dual purpose. First, it provides a massive, stable mounting surface that distributes pull-force across a wider area of the door leaf, preventing the handle from being “ripped” out. Second, it acts as a finger plate, protecting the door from the scuffs and impact damage common in high-traffic wards. When installed as an Anti Ligature Pull Handle on Backplate, the unit offers a seamless, “zero-gap” finish that leaves no crevices for unauthorized tampering.

Why the Anti Ligature Pull Handle on Backplate is the Industry Standard

• Ligature-Resistant Geometry: The fully radiused and chamfered edges of the Anti Ligature Pull Handle on Backplate ensure there are no sharp corners or grip points for ligatures.

• Grade 304 Stainless Steel: Forged from premium-grade alloy, this hardware is built to survive extreme physical abuse and frequent operation in demanding institutional settings.

• Tamper-Proof Bolt-Through Fixings: Every Anti Ligature Pull Handle on Backplate is supplied with heavy-duty security bolts (Pin-Hex or Torx). These are clamped through the door, making it virtually impossible to remove or dismantle the unit without specialized tools.

• Hygienic & Corrosion Resistant: The satin stainless steel finish is non-porous and resistant to the harsh chemical disinfectants required for modern infection control protocols.

• Fire Rated Integrity: Fully tested and certified for use on 30-minute and 60-minute timber fire doors, ensuring that your facility remains compliant with both life-safety and fire-safety regulations.

• Retrofit Capabilities: The large backplate is ideal for refurbishment projects, as it can effectively cover existing boreholes or damage left by previous, non-compliant hardware.

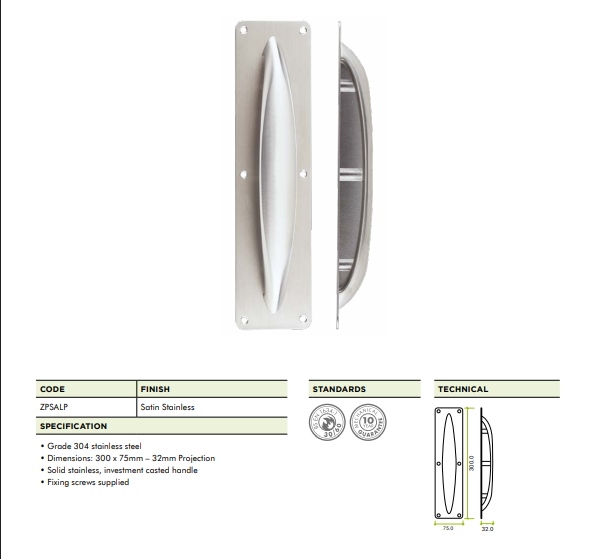

Technical Specifications

Achieving a “Zero-Gap” Professional Installation

The safety of an Anti Ligature Pull Handle on Backplate is entirely dependent on a “zero-gap” fitment. In high-risk environments, even a 1mm gap between the backplate and the door can be exploited.

1. Flush Surface Mounting: Ensure the door leaf is perfectly flat. If the door is warped, the backplate may “bow,” creating a gap. Installers must sand or level the door surface before the final bolt-tightening.

2. Anti-Pick Sealant: In maximum-security settings, it is best practice to apply a thin bead of anti-pick, security-grade mastic around the entire perimeter of the Anti Ligature Pull Handle on Backplate. This prevents the insertion of thin wires or threads behind the hardware.

3. Correct Bolt Tension: Use a torque-limited driver to ensure the bolt-through fixings are tight enough to compress the plate against the door without stripping the threads.

4. Cleaning Protocols: To maintain the “slip-off” safety feature, the surface must remain smooth. Avoid abrasive scouring pads; use a microfiber cloth and a dedicated stainless steel polish to keep the satin finish pristine.

A Cohesive Safety Solution

The Anti Ligature Pull Handle on Backplate is the definitive choice for architects and facility managers who believe that utility should never come at the expense of patient safety. By combining a robust protective plate with a proven sloped handle design, this hardware provides a stable, long-lasting, and secure door-opening solution. It is the gold standard for creating a therapeutic environment that prioritizes the dignity and well-being of its users while maintaining the highest levels of institutional security.

This anti ligature pull handle on a backplate is made from durable stainless steel, providing excellent strength, corrosion resistance, and long-lasting reliability. Designed for safety-focused environments, it offers a secure and practical solution for doors in healthcare facilities, secure units, and other high-risk areas.

The integrated backplate enhances stability and prevents tampering, while the smooth, curved handle profile reduces potential risks. Supplied with fixings for straightforward installation, it combines safety, functionality, and a professional finish, making it ideal for both commercial and residential applications.
