Anti Ligature Turn and Release Grade 304 Stainless Steel Safety Door Hardware Fixings Included

In specialized behavioral health design, standard bathroom thumbturns pose a significant risk due to their protruding levers and “hook” profiles. The Anti Ligature Grade 304 Turn and Release mitigates these hazards through a specialized “sloped” or “elephant-ear” geometry. By utilizing a smooth, tapered profile that angles toward the door leaf, the hardware ensures that any cord, clothing, or ligature material placed over the turn will immediately slide off under tension.

This hardware functions as a complete privacy set: the internal “Turn” allows the service user to lock the door for privacy, while the external “Release” provides staff with instant emergency access. When paired with a bathroom mortice lock, the Anti Ligature Grade 304 Turn and Release provides a robust, tamper-proof solution that prioritizes life safety without compromising on the operational requirements of a clinical facility.

Why Grade 304 Stainless Steel is the Essential Choice

The material composition of the Anti Ligature Grade 304 Turn and Release is just as critical as its shape. Grade 304 steel is specified for its performance in high-stress institutional environments:

• Corrosion Resistance and Hygiene: Clinical bathrooms are high-humidity zones subjected to aggressive chemical disinfectants. Grade 304 steel resists pitting and rusting, maintaining a non-porous surface that inhibits the growth of bacteria.

• Impact and Tamper Resistance: High-risk wards require hardware that cannot be easily dismantled or damaged. The high tensile strength of the Anti Ligature Grade 304 Turn and Release ensures it remains structural even under physical abuse.

• Institutional Durability: Designed for heavy-handed, frequent use, the internal mechanics of the turn are built for a long lifecycle, reducing the need for costly replacements in busy wards.

• Satin Luster: The brushed finish provides a professional, “non-institutional” aesthetic that contributes to a calming, therapeutic atmosphere while hiding the appearance of fingerprints and scuffs.

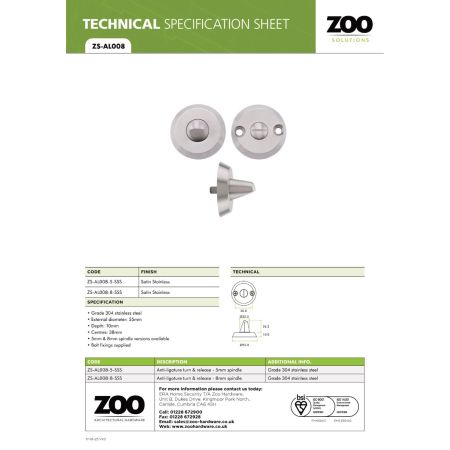

Technical Specifications and Compliance of Anti Ligature Grade 304 Turn and Release

The Anti Ligature Grade 304 Turn and Release is designed to meet strict safety benchmarks, often aligning with DHF Technical Specifications (TS001) for ligature-resistant hardware.

Achieving a “Zero-Gap” Professional Installation

The effectiveness of an Anti Ligature Grade 304 Turn and Release depends entirely on the quality of its installation. In high-risk settings, even a minor gap can become a hazard.

1. Flush Mounting: The unit must sit perfectly flush against the door leaf. If the door surface is uneven, a gap may occur where a thread could be wedged. Installers should ensure the door face is sanded and flat before final tightening.

2. Security Fixings: Always use the provided bolt-through security fixings (such as Pin-Hex or Torx bolts). This “clamping” effect between the internal turn and external release makes it virtually impossible for the hardware to be pried off.

3. Emergency Release Check: Before commissioning the room, staff must test the external release from the outside to ensure it overrides the internal lock smoothly.

4. Security Sealant: In maximum-security settings, a bead of pick-resistant, security-grade mastic should be applied around the perimeter of the rose to ensure a completely sealed, “zero-gap” finish.

A Cohesive Safety Strategy

The Anti Ligature Grade 304 Turn and Release is a fundamental component of a safe, compliant facility. By choosing a high-quality, Grade 304 unit, facility managers are investing in hardware that protects vulnerable individuals while providing healthcare professionals with the emergency access they need. It is a critical step in creating a secure, therapeutic environment that adheres to the highest standards of architectural life safety.

This anti ligature turn and release is crafted from premium grade 304 stainless steel, offering superior strength, corrosion resistance, and long-lasting durability. Designed for safety-conscious environments, it provides a secure and practical solution for doors in healthcare facilities, secure units, and other high-risk areas.

The smooth, rounded design reduces potential risks while maintaining a professional and modern appearance. Supplied with fixings for easy installation, this turn and release mechanism ensures reliable performance, combining safety, functionality, and style for both commercial and residential applications.
