Anti Ligature Escutcheon Stainless Steel -No Keyhole Safety Door Fitting Fixings Included

In behavioral health and correctional environments, every element of a door’s ironmongery must be scrutinized for potential hazards. A standard lock escutcheon—the plate that surrounds a keyhole—often has sharp edges or a profile that can be used to wedge or loop a cord. The Anti Ligature Escutcheon solves this through a specialized “sloped” or “chamfered” geometry. By utilizing a smooth, angled surface that tapers toward the door leaf, the escutcheon ensures that any material placed over it will immediately slide off under tension.

Beyond its primary safety function, the Anti Ligature Escutcheon provides vital physical protection for the lock cylinder itself. By surrounding the cylinder with high-strength, Grade 304 Stainless Steel, the escutcheon prevents the lock from being gripped with pliers, hammered, or tampered with by service users. It is the definitive choice for facilities that require a balance between high-security lock access and a “ligature-resistant” clinical environment.

Why the Anti Ligature Escutcheon is the Professional Choice

• Ligature-Resistant Profile: The Anti Ligature Escutcheon features a fully radiused, non-grip design. Whether in a “circular-sloped” or “teardrop” style, the lack of flat horizontal surfaces makes it impossible to establish a point of suspension.

• Grade 304 Stainless Steel Durability: Forged from institutional-grade alloy, the Anti Ligature Escutcheon is built to withstand extreme physical abuse. It resists impact and scratching, ensuring the “slip-off” safety feature remains effective over the long term.

• Tamper-Proof Security Fixings: These units are typically installed using “Pin-Hex” or “Torx” bolt-through fixings. This prevents unauthorized removal and ensures the Anti Ligature Escutcheon remains a permanent, immovable part of the door assembly.

• Euro Profile Compatibility: Most professional Anti Ligature Escutcheon models are designed to fit standard Euro-profile cylinders, making them a versatile choice for both new builds and refurbishment projects.



• Hygienic Satin Finish: The non-porous surface of Grade 304 steel is resistant to the aggressive chemical disinfectants used in hospitals, maintaining its structural integrity and aesthetic finish in sterile environments.



• Fire Rated Compliance: Fully tested for use on 30-minute and 60-minute timber fire doors, ensuring that your facility meets both life-safety and fire-safety regulations.

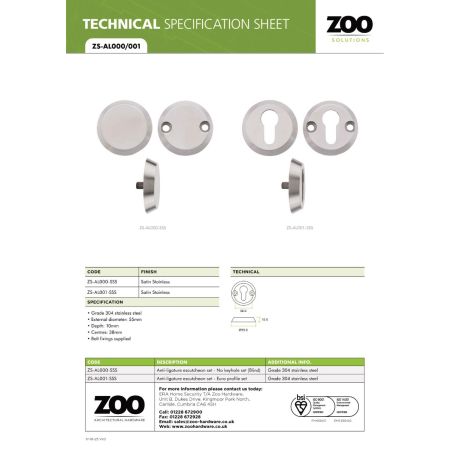

Technical Specifications

Professional Installation and Maintenance Guide

The safety effectiveness of an Anti Ligature Escutcheon is entirely dependent on a “zero-gap” installation. In high-risk environments, there is no margin for error.

1. Flush Fitment is Essential: The Anti Ligature Escutcheon must sit perfectly flush against the door leaf. If there is a gap between the plate and the wood, a thin ligature (like a thread or fine wire) could be wedged behind it. Ensure the door surface is flat and free of debris before mounting.

2. Cylinder Alignment: The Euro cylinder should sit as flush as possible within the Anti Ligature Escutcheon. If the cylinder protrudes significantly, it creates a new “grip point.” Always specify the correct cylinder length to match the combined thickness of the door and the escutcheon.

3. Bolt-Through Clamping: Always use the provided bolt-through fixings. This “clamping” effect between the internal and external Anti-Ligature Escutcheon makes it virtually impossible for the unit to be pried off the door.

4. Security Sealants: In maximum-security settings, a bead of pick-resistant, security-grade mastic should be applied around the perimeter. This prevents the accumulation of contraband or debris behind the hardware.

5. Safety Audits: Conduct monthly inspections. Check for loose bolts or any surface damage that could create a “burr” or grip point. A smooth, clean surface is required for the anti-ligature function to work correctly.

A Cohesive Safety Solution for High-Risk Doors

The Anti-Ligature Escutcheon is more than just a decorative trim; it is a critical safety barrier. By choosing a high-quality, Grade 304 unit, facility managers are investing in a durable, tamper-resistant solution that protects vulnerable individuals and the building’s security infrastructure. It is the gold standard for creating a secure, therapeutic environment that prioritizes life safety without sacrificing clinical functionality.

This anti-ligature escutcheon is crafted from high-quality stainless steel, offering exceptional durability, corrosion resistance, and long-lasting performance. Designed for safety-critical environments, it provides a secure and tamper-resistant solution for door lock cylinders and keyholes in healthcare, secure facilities, and other sensitive areas.

The smooth, rounded design minimises potential risks while maintaining a clean and professional appearance. Supplied with fixings for easy installation, this escutcheon ensures reliable protection, combining safety, functionality, and modern style for a variety of commercial and residential applications.
