Adjustable Roller Latch Heavy Duty Door Latch with Smooth Closing Action Versatile Hardware for Interior and Exterior Doors

To provide a seamless and customizable door closing experience, the Adjustable Roller Latch is the professional choice for doors that do not require a traditional lever handle. Engineered with a spring-loaded roller that can be tuned to varying levels of resistance, this hardware allows for a simple “push-pull” operation, making it the ideal specification for walk-in wardrobes, double-swing kitchen doors, and minimalist “handle-free” interiors.

Precision Control: The Adjustable Roller Latch

In modern architectural design, the Adjustable Roller Latch (often called a “Roller Bolt”) is favored for its discreet functionality. Unlike a standard latch that requires a handle to be turned, the roller latch relies on a sprung wheel that retracts when the door is pushed or pulled. This allows for the use of fixed pull handles or “push plates,” creating a clean, streamlined look on both residential and commercial doors.

The “Adjustable” feature is the core of its success. By turning a small integrated screw, you can increase or decrease the spring tension. This allows you to calibrate the latch perfectly for the weight of the door—ensuring it stays closed against drafts but remains easy enough for a child or elderly user to push open without effort.

Why the Adjustable Roller Latch is the Professional Choice

• Customizable Closing Tension: The internal spring can be tightened for heavy external doors or loosened for lightweight internal cupboard doors, providing a “bespoke” feel to the door’s movement.

• Low-Friction Operation: Most high-end roller latches feature a nylon or solid brass roller. These materials glide silently over the strike plate, eliminating the harsh scraping sound of metal-on-metal.

• Minimalist “Push-Pull” Design: Perfect for doors where a turning lever would ruin the aesthetic. It is commonly paired with high-end pull bars or recessed finger pulls.

• Grade 304 Stainless Steel Build: The faceplates are forged from premium SS304, ensuring the latch remains rust-free and maintains its satin luster in kitchens and bathrooms.

• Standard Mortice Sizing: Designed to fit standard 57mm to 76mm case depths, making it an easy architectural specification for new builds or as a retrofit for old ball catches.

• Silent “Click” Engagement: When the door closes, the roller “pops” into the strike plate recess with a satisfying, muted sound, providing clear tactile feedback that the door is secure.

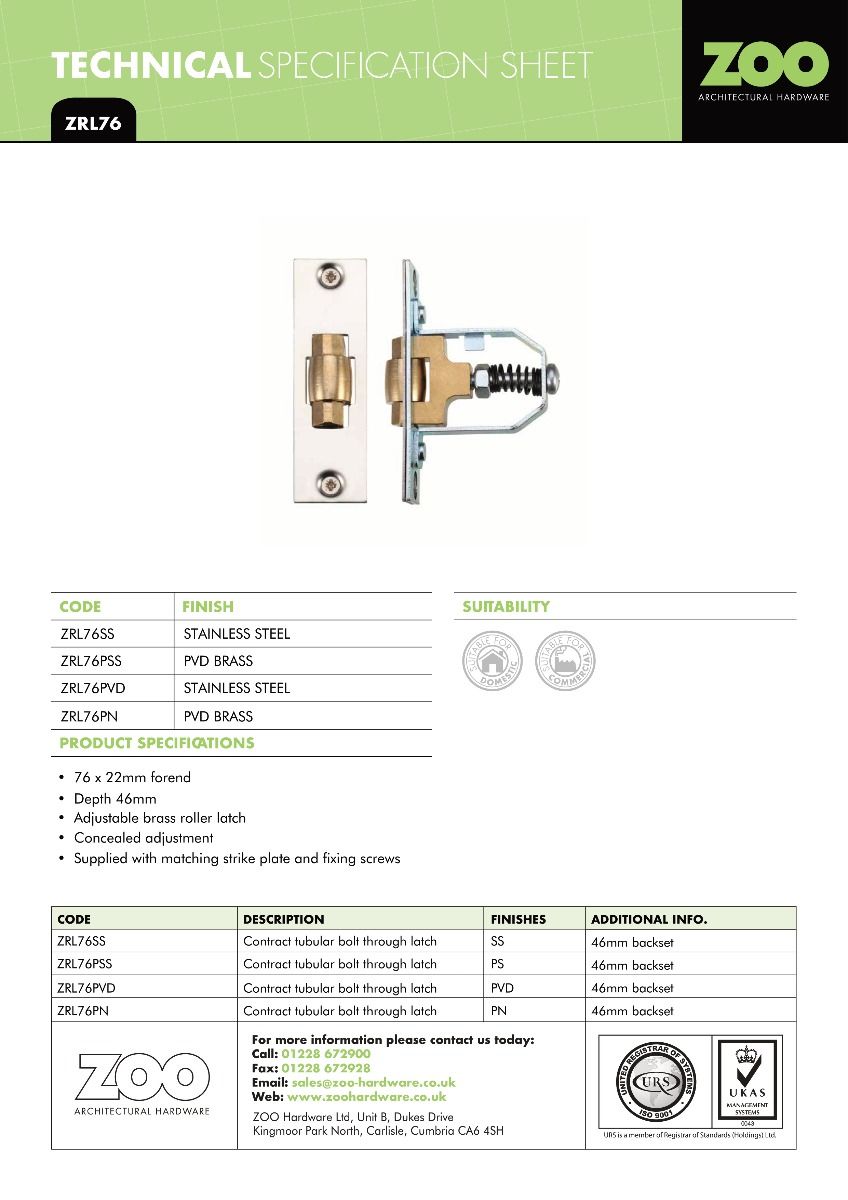

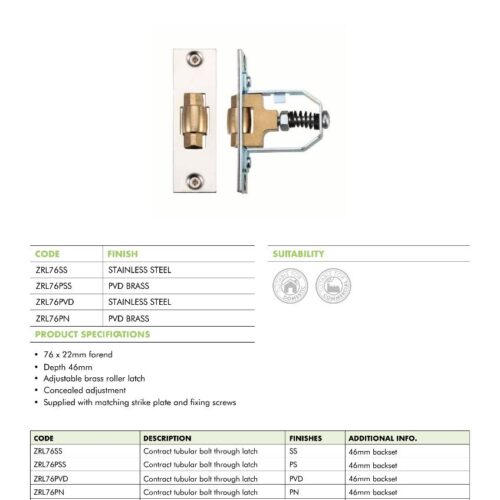

Technical Specifications of Adjustable Roller Latch

Professional Installation for a Smooth Close

An Adjustable Roller Latch is only as good as its alignment. To ensure it doesn’t “drag” or “pop” too loudly, follow these professional tips:

1. Vertical Centering: Install the latch at a height where it won’t be affected by the door “bowing” over time. Usually, this is centered between the top and middle hinges.

2. Strike Plate Depth: Mortice the strike plate into the door jamb until it is perfectly flush. If the strike plate is proud, the roller will “hit” the edge of the plate rather than gliding into the recess, causing a loud bang.

3. Tension Calibration: Once installed, use a flat-head screwdriver to turn the adjustment screw. Clockwise increases tension (for a firmer hold); Counter-clockwise decreases it (for a lighter touch).



4. Gap Management: Ensure there is a 3mm to 4mm gap between the door and the frame. If the gap is too small, the roller won’t have enough room to retract fully, leading to a jammed door.

5. Strike Plate Lubrication: While nylon rollers are self-lubricating, a tiny smear of clear silicone grease inside the strike plate recess will ensure a “whisper-quiet” operation for years to come.

The Ultimate Detail for Modern Interiors

The Adjustable Roller Latch is the perfect example of how a small, hidden component can transform the “feel” of a building. It provides a tactile, premium experience every time a door is opened or closed. By choosing a high-quality SS304 unit with an adjustable brass roller, you are investing in a durable, reliable solution that elevates the functionality of your architectural project.

This Adjustable Roller Latch is designed to provide smooth, reliable and adjustable door closing action, making it suitable for a wide variety of applications in both residential and commercial properties. The latch features a spring-loaded roller mechanism that allows doors to open and close quietly without the need for a traditional handle-operated latch, making it a popular choice for cupboard doors, double doors and other lightweight or interior door installations.

Crafted from durable and long-lasting materials, this Adjustable Roller Latch ensures dependable performance even with frequent use. Its adjustable design allows for a perfect fit and smooth operation, helping to maintain proper door alignment over time. Quick and easy to install with all fixings included, it is a practical and versatile hardware solution for homeowners, contractors and builders looking for a reliable and efficient door latch option.
