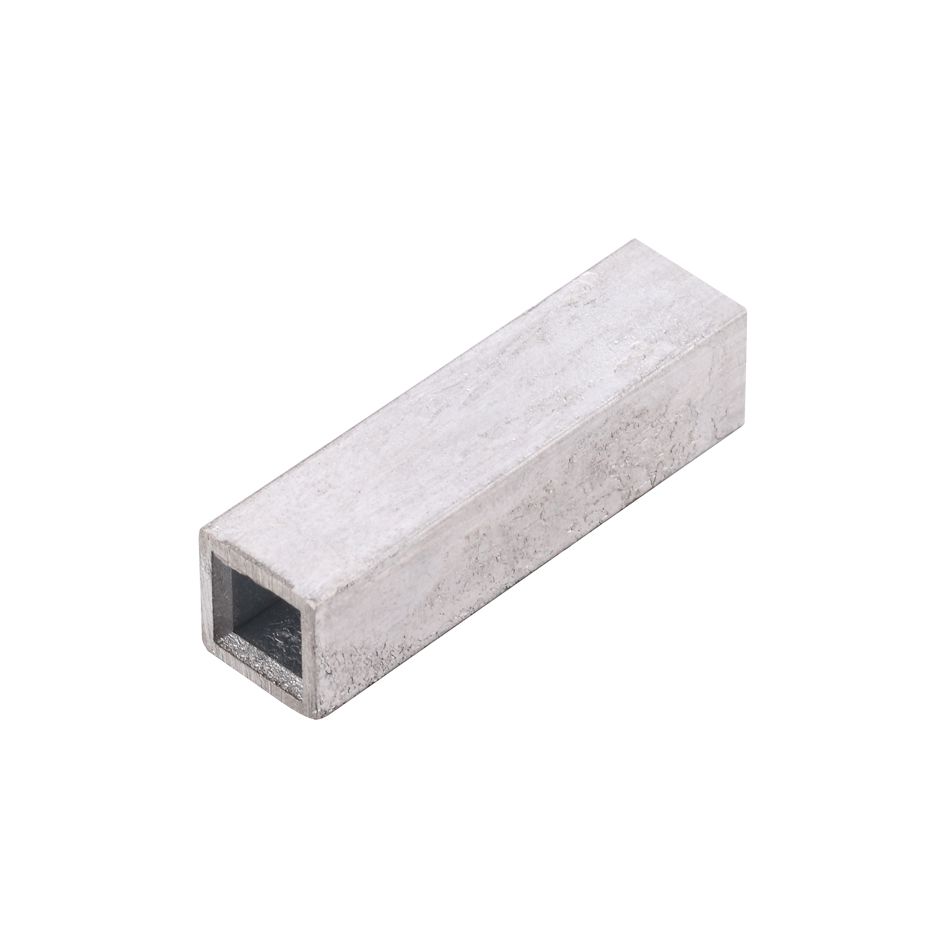

Adaptor Sleeve 5mm to 8mm 20mm Length Metal Connector

In the world of architectural ironmongery, standardized dimensions are not always universal. Many high-quality Italian or designer lever handles are manufactured with a 5mm square spindle, whereas the majority of heavy-duty commercial mortice locks and bathroom bolts feature an 8mm square follower. The Adaptor Sleeve 5mm to 8mm acts as a mechanical bridge, expanding the profile of your existing spindle to ensure a tight, secure fit within the lock mechanism.

Without this sleeve, a 5mm spindle would “slip” or rattle inside an 8mm lock, leading to mechanical failure and an unprofessional feel. By utilizing this 20mm length metal connector, you can upgrade your door furniture without the need to replace expensive lock cases or source rare, custom spindles.

Why the Adaptor Sleeve 5mm to 8mm is a Professional Essential

• Precision Machined Fit: The Adaptor Sleeve 5mm to 8mm is engineered to tight tolerances, ensuring that once it is slid onto the spindle, there is zero “play” or wobble. This results in a crisp, positive handle action every time.

• Heavy-Duty Metal Construction: Forged from high-strength zinc alloy or steel, this sleeve is built to withstand the torque and shear forces generated by daily handle operation. It will not compress or deform over time.

• Optimal 20mm Length: The 20mm length is the industry “sweet spot.” it provides enough surface area to fully engage with the lock follower while remaining compact enough to fit inside the door leaf without interfering with the handle’s spring mechanism.

• Cost-Effective Hardware Retrofitting: Instead of replacing an entire lock set to match a new set of handles, the Adaptor Sleeve 5mm to 8mm allows you to adapt your current components for a fraction of the cost.

• Easy Installation: No specialized tools are required. The sleeve simply slides over the 5mm spindle. Once the handle is tightened, the pressure of the grub screw or bolt-through fixing secures the assembly in place.



• Universal Application: This converter is compatible with a wide range of mortice locks, latch sets, and bathroom privacy bolts, making it a vital addition to any professional maintenance kit.

Technical Specifications

Professional Installation Tips for a Rattle-Free Finish

To achieve a professional-grade installation with your Adaptor Sleeve 5mm to 8mm, follow these best practices:

1. Check the “Follower” Depth: Measure the depth of your lock’s square hole (the follower). If it is shallower than 20mm, you may need to trim the sleeve slightly with a hacksaw to ensure the handle can sit flush against the door.

2. Centering the Sleeve: For the best mechanical advantage, slide the sleeve onto the spindle so it is centered within the lock case. This ensures even distribution of torque when the handle is turned.

3. Grub Screw Alignment: When securing your door handle, ensure the grub screw on the handle neck bites into the spindle, not just the sleeve. If the sleeve is long, you may need to drill a small pilot hole through the sleeve to allow the grub screw to reach the spindle.

4. Avoid Lubricants: Do not apply grease or oil between the spindle and the Adaptor Sleeve 5mm to 8mm. The goal is a high-friction, static fit; lubrication can lead to the spindle slipping inside the sleeve.

5. Multi-Spindle Use: If your handle uses a “split spindle” for privacy functions, ensure you use two sleeves (one for each side) to maintain consistent operation.

The Small Part that Makes a Big Difference

The Adaptor Sleeve 5mm to 8mm is a testament to the fact that great architecture is found in the details. It turns a frustrating hardware mismatch into a smooth, functional success. By investing in this precision-engineered metal connector, you ensure that your door hardware performs with the reliability and tactile quality that high-end interiors demand.

This Adaptor Sleeve 5mm to 8mm is a precision-engineered connector designed to adapt 5mm shafts to 8mm components with a 20mm length. Made from strong metal, it provides a secure and reliable fit, ensuring smooth performance and durability in mechanical, DIY, and engineering applications. Its compact size makes it versatile while maintaining strength and stability during use.

Perfect for hobbyists, engineers, and maintenance tasks, this metal adaptor sleeve allows quick and efficient integration between different shaft sizes without the need for modifications. Whether used in robotics, machinery, or custom projects, it delivers excellent strength, long-lasting performance, and precision, making it an essential part for a wide range of applications.
