In high-end interior design, the “Architectural” designation signifies a component built to the highest mechanical standards. The 76mm Architectural Tubular Latch (3-inch) is designed to provide a “soft-close” feel while maintaining a powerful return spring. This dual-action springing allows the latch bolt to retract with minimal friction when the door is pushed shut, while the heavy-duty follower spring ensures that premium, heavy lever handles never “droop” over time.
With a generous 57mm backset (the distance from the door edge to the center of the spindle), this latch is the ideal choice for traditional timber doors and wide-stile modern doors. It positions the handle further from the frame, providing superior ergonomics and preventing “knuckle-clipping” against the door stop—making it the minimum recommended size for use with door knobs.
Why the 76mm Architectural Tubular Latch is the Professional Choice
-
Double-Sprung Mechanism: Features separate springs for the latch bolt (soft entry) and the spindle follower (heavy return), providing a high-end, tactile feel.
-
Architectural 57mm Backset: The 76mm case length provides the optimal handle position for aesthetics and ease of use, particularly on heavy internal doors.
-
Bolt-Through Fixing Points: The case is pierced at 38mm centers to allow “male-to-female” bolt-through fixings to pass directly through the mechanism, ensuring handles remain rock-solid for years.
-
Solid Brass Guided Bolt: Many architectural latches feature a precision-guided solid brass bolt to reduce internal friction and mechanical wear.
-

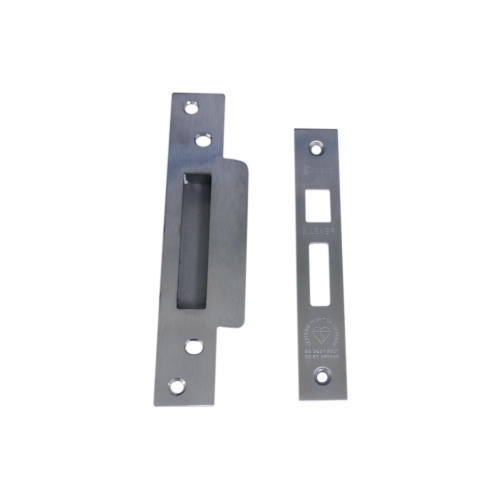

Aesthetic Finish Kits: Supplied with a matching forend and strike plate (often in Satin Stainless Steel), and a black plastic dust box to conceal unsightly timber cut-outs inside the frame.
-
Fire-Rated Compliance: CE/UKCA marked and tested for use on 30 and 60-minute fire doors (FD30/FD60) when fitted with the correct intumescent liners.

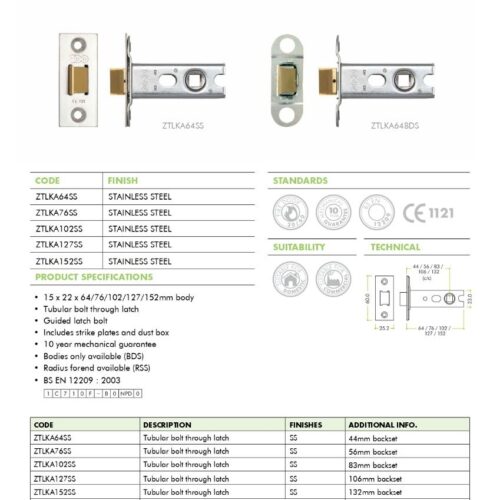

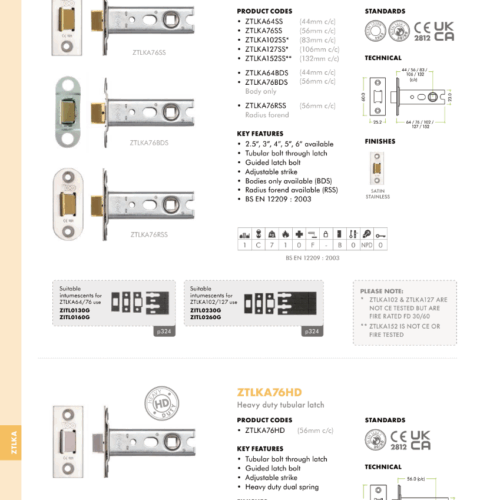

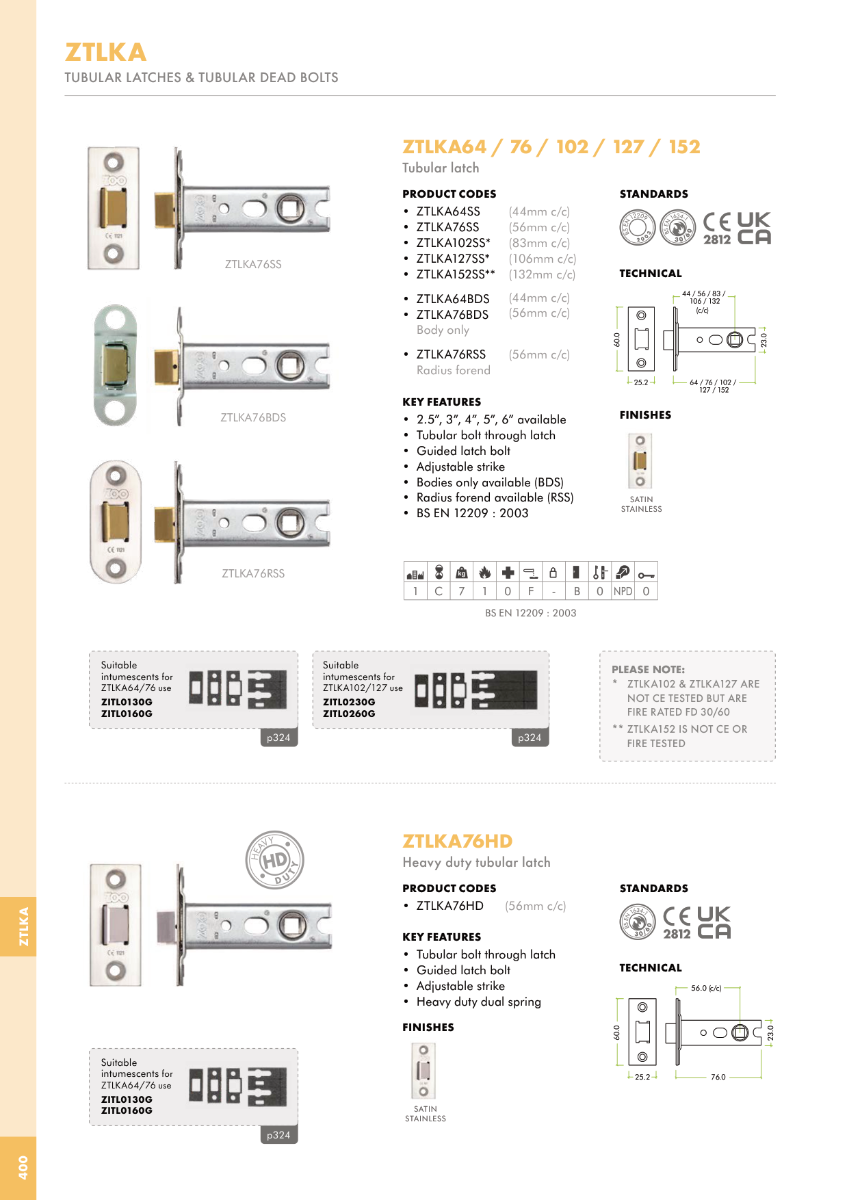

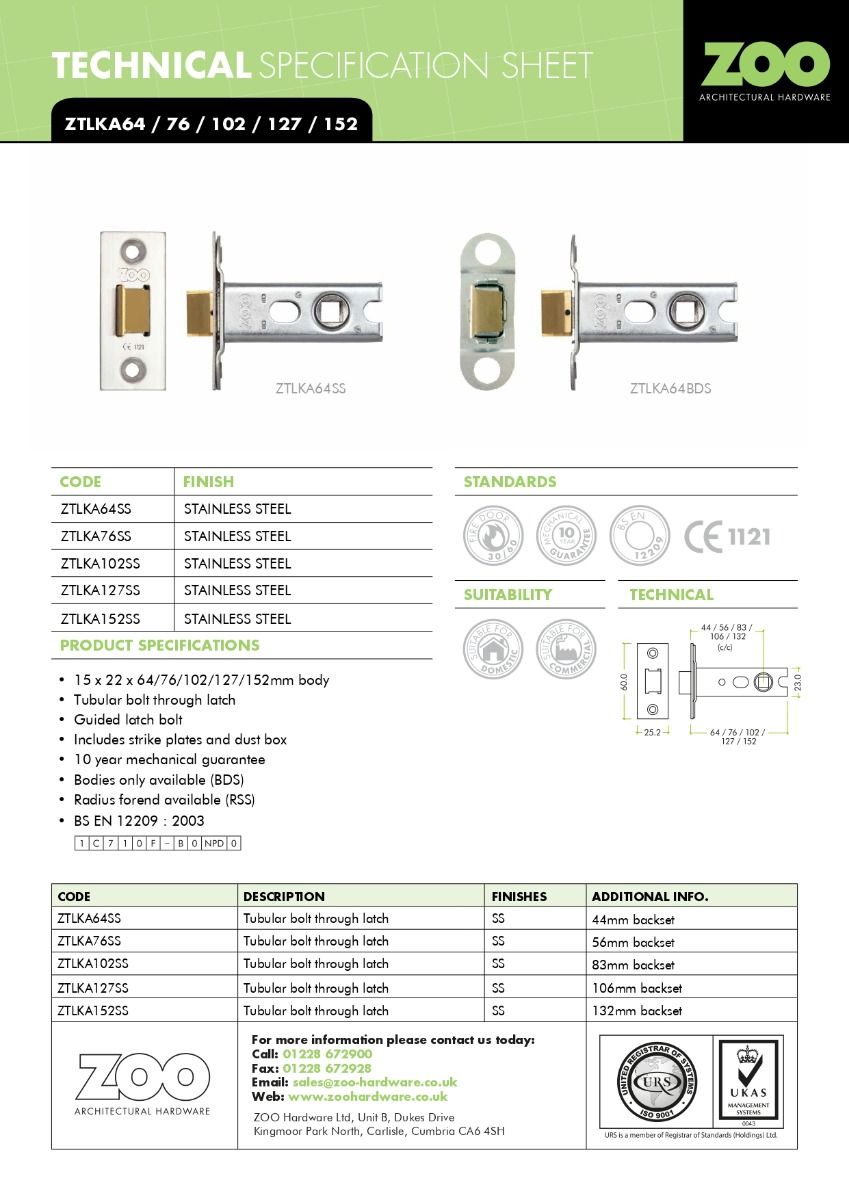

Technical Specifications of 76mm Architectural Tubular Latch
| Feature | Specification |
| Case Length | 76mm (3 Inches). |
| Backset | 57mm (Standard Architectural Center). |
| Springing | Double-Sprung (Heavy Duty). |
| Material Build | Grade 304 Stainless Steel / Solid Brass Bolt. |
| Testing Standards | BS EN 12209 / Fire Rated FD30/60. |
| Spindle Size | 8mm x 8mm (Standard UK). |
Professional Installation and Maintenance Tips
To ensure your 76mm Architectural Tubular Latch provides a lifetime of smooth operation, follow these professional guidelines:
-
Precision Morticing: Use a sharp 22mm or 25mm spade bit for the main bore. For architectural projects, a dedicated latch jig is recommended to ensure the hole is perfectly horizontal, preventing the spindle from “binding.”
-
Clean the Bore: Before final fitting, ensure all sawdust is removed. Fine wood debris is the primary cause of “gritty” mechanism feel in new installations.
-
Correct Spindle Alignment: If using bolt-through handles, ensure the bolts pass cleanly through the latch case without forcing. Misaligned bolts can put lateral pressure on the internal springs.
-
Recess the Dust Box: Always use the supplied plastic dust box behind the strike plate. It prevents wood shavings from falling into the mechanism and provides a cleaner visual finish.
-
Annual Lubrication: Apply a small amount of dry PTFE lubricant or graphite powder to the latch bolt and follower every 12 months. Avoid wet oils or WD-40, which can attract dust and eventually gum up the high-tension springs.
The Standard for Refined Interiors
The 76mm Architectural Tubular Latch is the essential “behind-the-scenes” component that makes a high-end door feel premium. By choosing an architectural-grade, double-sprung latch, you are investing in a daily touchpoint that is as reliable as it is smooth. It is the definitive choice for architects, high-end joiners, and homeowners who refuse to compromise on hardware performance.

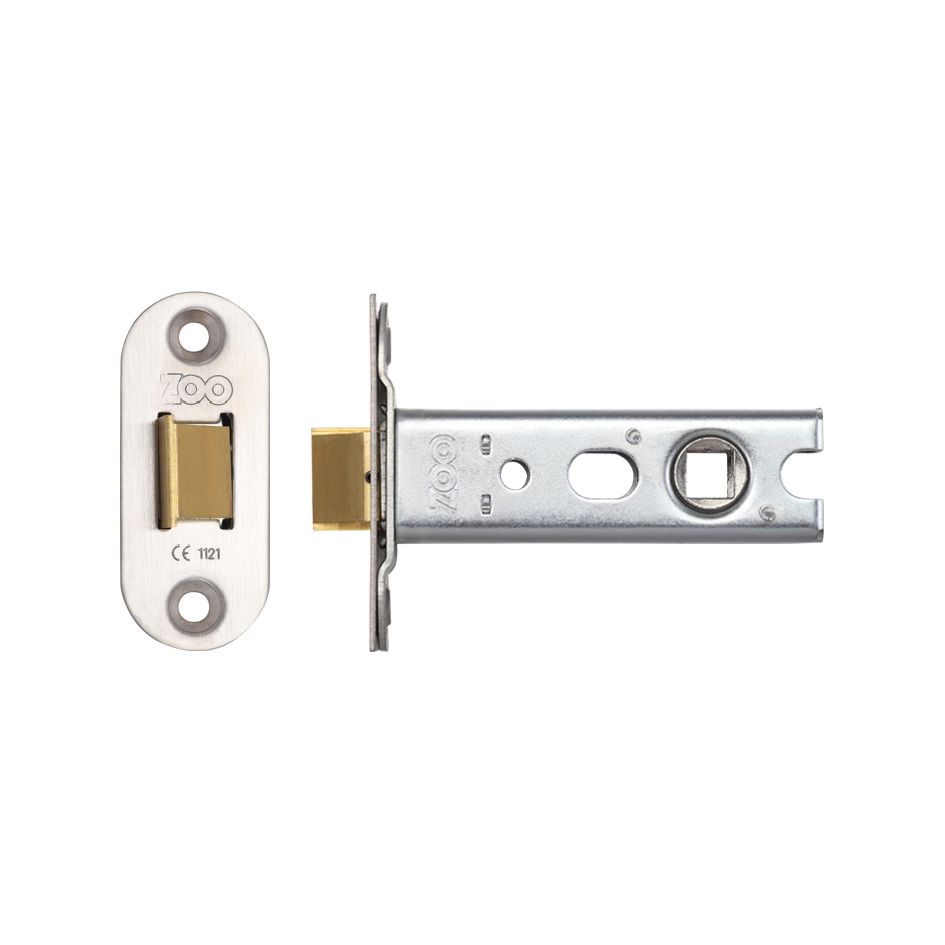

This 76mm Architectural Tubular Latch for knobs, featuring a 45° travel and 76mm backset, is designed to provide smooth, reliable and precise operation for internal doors. Complete with a satin stainless steel (SSS) forend and a radius edge design, it ensures a professional fit in pre-cut rounded mortices, saving time and effort during installation. The 76mm backset offers comfortable handle positioning, making it suitable for both residential and commercial applications.
Constructed from high-quality, durable materials, this 76mm Architectural Tubular Latch is built to withstand frequent daily use while maintaining long-lasting performance. The 45° travel design reduces strain on door knobs, delivering ergonomic operation and enhanced user comfort. Quick to install with all fixings included, this 76mm Architectural Tubular Latch provides a professional, stylish and dependable hardware solution for architects, builders and homeowners seeking efficiency, durability and smooth door function.
