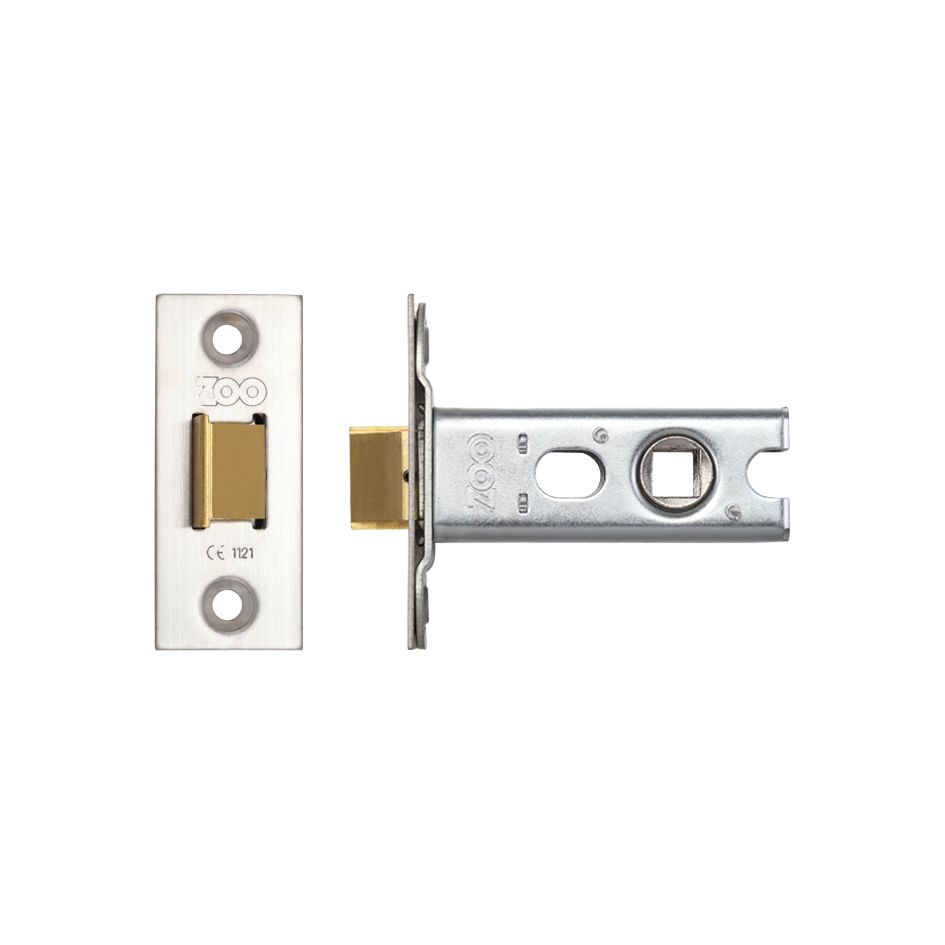

Tubular Latch (Knobs) Architectural 45° Travel 64mm with SSS Forends 1 Way Action Durable Internal Door Latch

In architectural ironmongery, the efficiency of a door’s operation is defined by the internal latch mechanism. The 64mm Architectural 45 Degree Tubular Latch (2.5-inch) is the industry standard for modern internal doors with standard-width stiles. By providing a 44mm backset (the distance from the door edge to the center of the spindle), 64mm Architectural 45 Degree Tubular Latch ensures your door knobs or levers are positioned perfectly for both aesthetic balance and functional clearance.

The standout feature of this latch is its specialized 45-degree travel. While standard economy latches often require a full 60° to 90° turn to retract the bolt, this architectural model fully opens with just a 45° flick of the wrist. This “short-travel” technology is essential for round mortice knobs, which naturally offer less leverage than handles. Paired with a one-way action spring, the 64mm Architectural 45 Degree Tubular Latch provides a firmer, more stable resistance that prevents “handle sag” over time.

Why the 64mm Architectural 45 Degree Tubular Latch is the Professional Choice

• Optimized 44mm Backset: The 64mm case length is specifically scaled for standard residential doors, ensuring the hardware doesn’t sit too deep into the timber.

• Effortless 45° Rotation: Reduces the physical effort required to open the door—perfect for children, the elderly, or those using large, heavy knobs.

• Heavy-Duty One-Way Spring: Designed with a high-tension internal coil that can support the weight of solid brass, crystal, or stone knobs without drooping.

• Grade 304 Stainless Steel Forend: The faceplate features a premium Satin Stainless Steel (SSS) finish, providing a modern look that is rust-proof and scratch-resistant.

• Silent Guided Bolt: The latch bolt is precision-profiled to minimize friction against the strike plate, resulting in a whisper-quiet “click” when the door closes.

• Bolt-Through Housing: The case is pierced to accept “male-to-female” bolt-through fixings, ensuring your door furniture is securely clamped together and won’t pull loose from the timber.

Technical Specifications of 64mm Architectural 45 Degree Tubular Latch

Professional Installation and Maintenance Tips

A precision latch requires a precision fit. Follow these steps to ensure a lifetime of smooth operation:

1. Centered Boring: Use a 25mm flat bit or auger to bore the main latch hole. Ensure the drill is perfectly horizontal; even a slight angle can cause the spindle to bind against the internal cam.

2. Strike Plate Alignment: Mortice the strike plate into the frame so it sits flush. If the door “rattles” when closed, adjust the small metal tab inside the strike plate to pull the door tighter against the stop.

3. Use Bolt-Through Fixings: If your knobs or levers come with bolt-through screws, use them. Passing these screws through the designated holes in the latch case prevents the hardware from spinning or working its way out of the wood.

4. Avoid Over-Painting: When painting your doors, never paint over the latch bolt or the forend. Paint buildup inside the mechanism is the leading cause of “sticky” latches.

5. Annual Lubrication: Apply a quick puff of dry PTFE spray or graphite powder to the bolt face once a year. Avoid “wet” lubricants like WD-40, which can attract dust and eventually gum up the 45° mechanism.

The Standard for Refined Internal Doors

The 64mm Architectural 45 Degree Tubular Latch is the “hidden” upgrade that changes the entire feel of a room. It turns a basic mechanical movement into a satisfying, high-end experience. By matching your premium door furniture with a dedicated short-travel latch, you are ensuring that your home functions with the same level of quality and precision as its design.

This 64mm Architectural 45 Degree Tubular Latch for knobs, featuring a 45° travel and 64mm backset, is designed to deliver smooth, reliable, and precise door operation. Complete with satin stainless steel (SSS) forends, 64mm Architectural 45 Degree Tubular Latch provides a modern and professional finish, making it suitable for both residential and commercial applications. The 1 way action design ensures a straightforward and dependable function, ideal for standard internal door installations where controlled access is required.

Manufactured from high-quality, durable materials, this  64mm Architectural 45 Degree Tubular Latch is built for long-lasting performance even under frequent use. The 45° travel mechanism allows for easy and ergonomic knob operation while reducing wear on door hardware, ensuring efficiency and comfort. Quick to install with all fixings included, this 64mm Architectural 45 Degree Tubular Latch is a practical and dependable solution for builders, architects, and homeowners looking for a robust and stylish internal door latch.
