Escutcheons Different Profile 52mm Push On Rose Satin Aluminium Finish

To provide a comprehensive architectural guide to 52mm Escutcheons, we must look beyond the simple dimensions and explore the mechanical, aesthetic, and historical contexts that make this hardware essential.

In the world of ironmongery, the escutcheon (from the Old French escusson, meaning “shield”) serves a dual purpose: 52mm Escutcheons protects the door’s surface from the physical impact of keys and provides a decorative “finish” that conceals the functional bore holes required for the lock.

---

The 52mm Standard: Why Size Matters

While the high-street retail standard often sits at 50mm, the 52mm diameter is the “Professional’s Choice.” This additional 2mm is not merely for show; it serves several critical technical functions:

• Retrofit Coverage: When replacing old hardware, the 52mm footprint provides a crucial “buffer zone” to hide previous screw holes or timber splintering.

• Architectural Symmetry: Premium lever handles—such as those from Iver or Briton—frequently use a 52mm rose. Using a matching 52mm escutcheon ensures perfect geometric balance on the door face.

• Visual Weight: On thick, solid-core timber doors, a 50mm rose can sometimes look “underpowered.” The 52mm profile offers a more substantial, high-end feel.

---

1. The Euro Profile: Modern Security Integration

The Euro Profile Escutcheon is the most common requirement for modern residential and commercial buildings. It is specifically shaped to accommodate the 17mm x 33mm footprint of a Euro Cylinder.

The Briton 4213.8.SS Euro Cylinder Escutcheon represents the pinnacle of this category. Crafted from Grade 304 Stainless Steel, it is designed for longevity and resistance to the natural oils on human skin, which can tarnish lesser metals over time.

• Concealed Fixings: The 4213 series utilizes a two-part construction. An inner sub-rose is screwed to the door, and the decorative stainless steel cover pushes on over the top, leaving no visible screws.

• Low Profile: With an 8mm projection, it sits close to the door, preventing it from catching on clothing or appearing bulky.



---

2. The Blank Profile: Minimalism & Versatility

The Blank Profile Escutcheon (often called a “Blind Rose”) is a solid metal disc with no cut-out. While it may seem purely decorative, it is a problem-solver for architects and interior designers.

The Briton 52mm Blank Escutcheon Plate is the industry standard for maintaining a consistent “suite” of hardware throughout a property.

• Consistency: If your locking doors have 52mm Euro escutcheons, using 52mm Blank plates on your non-locking doors (like closets or slave doors in a double-door set) ensures the design language remains unbroken.

• Hiding Damage: These are exceptionally useful for “blanking off” old keyholes when a lock has been removed or a door has been repurposed, saving the cost of a full door replacement.



---

3. The Standard Profile: Heritage & Tradition

The Standard (or British) Profile features the classic “teardrop” shape used for traditional mortice sash locks and deadlocks. This is the go-to profile for Victorian, Georgian, and Edwardian restorations.

The Zoo Hardware ZAS02 Standard Profile Escutcheon allows you to maintain a traditional locking system while benefiting from modern manufacturing.

• Aesthetic Continuity: It respects the history of the property by accommodating traditional “skeleton” keys.

• Modern Construction: Despite its traditional look, it still utilizes the push-on rose system, hiding the mounting screws for a cleaner, more contemporary execution of a classic style.



---

Technical Installation Guide of 52mm Escutcheons

To ensure your 52mm escutcheons look as professional as the ones in a luxury showroom, follow these three “Golden Rules”:

I. The Centering Hack

For Euro and Standard profiles, the biggest mistake is a misaligned keyhole. Always insert the key into the lock and through the escutcheon before you drive the screws into the sub-rose. This uses the key as a centering pin, ensuring the plate is perfectly aligned with the lock cylinder.

II. Pilot Hole Precision

Even with high-quality stainless steel screws, driving them directly into hardwood can cause the timber to split or the screw head to “cam out” (strip). Always drill a 2mm pilot hole to ensure the sub-rose sits perfectly flat.

III. The “Snap” Check

When using push-on covers like the Briton 52mm plates, ensure the screw heads are driven flush. If a screw is protruding even 0.5mm, the outer cover will not snap into place, leaving a visible gap between the metal and the door.

---

Comparison of 52mm Profiles

Profile	Application	Material Recommendation
Euro	External security / Modern offices	Grade 304 Stainless Steel
Blank	Double doors / Closet doors	Matching finish to handles
Standard	Heritage homes / Interior timber	Forged Brass or Nickel

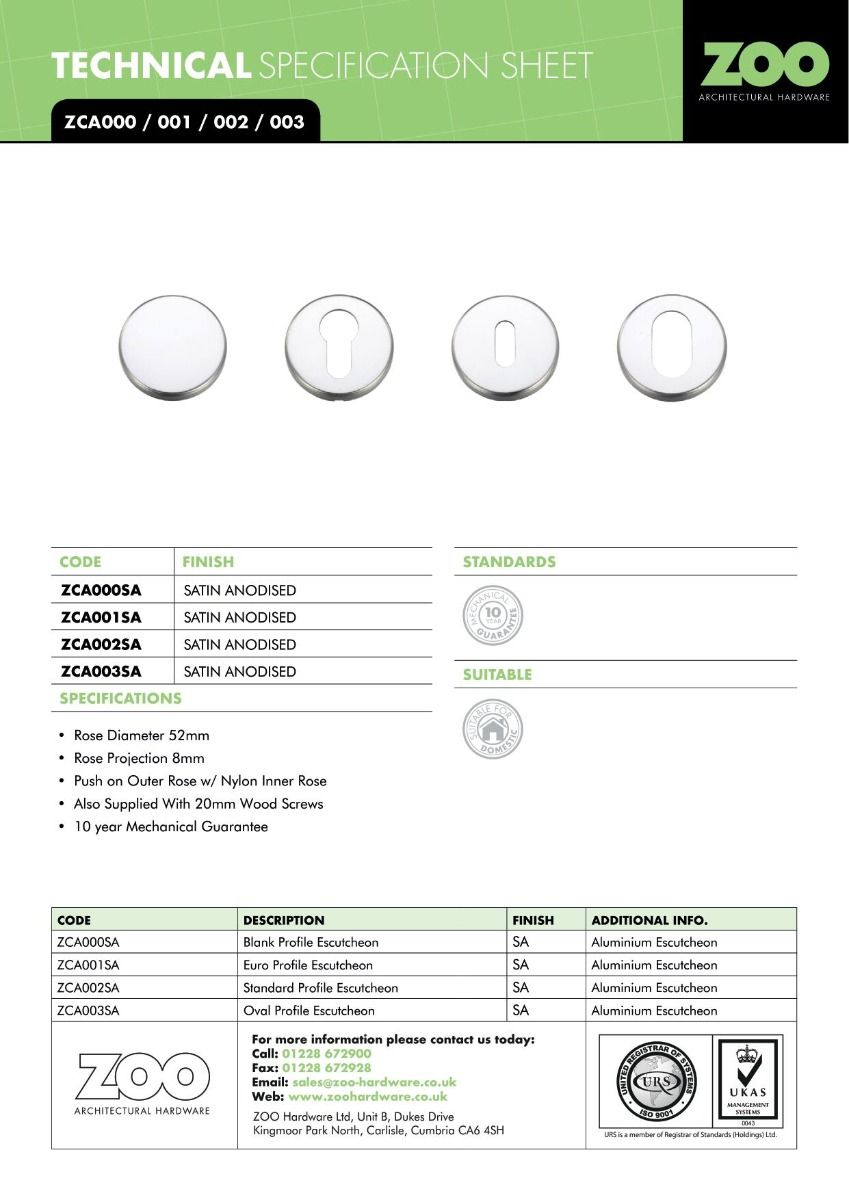

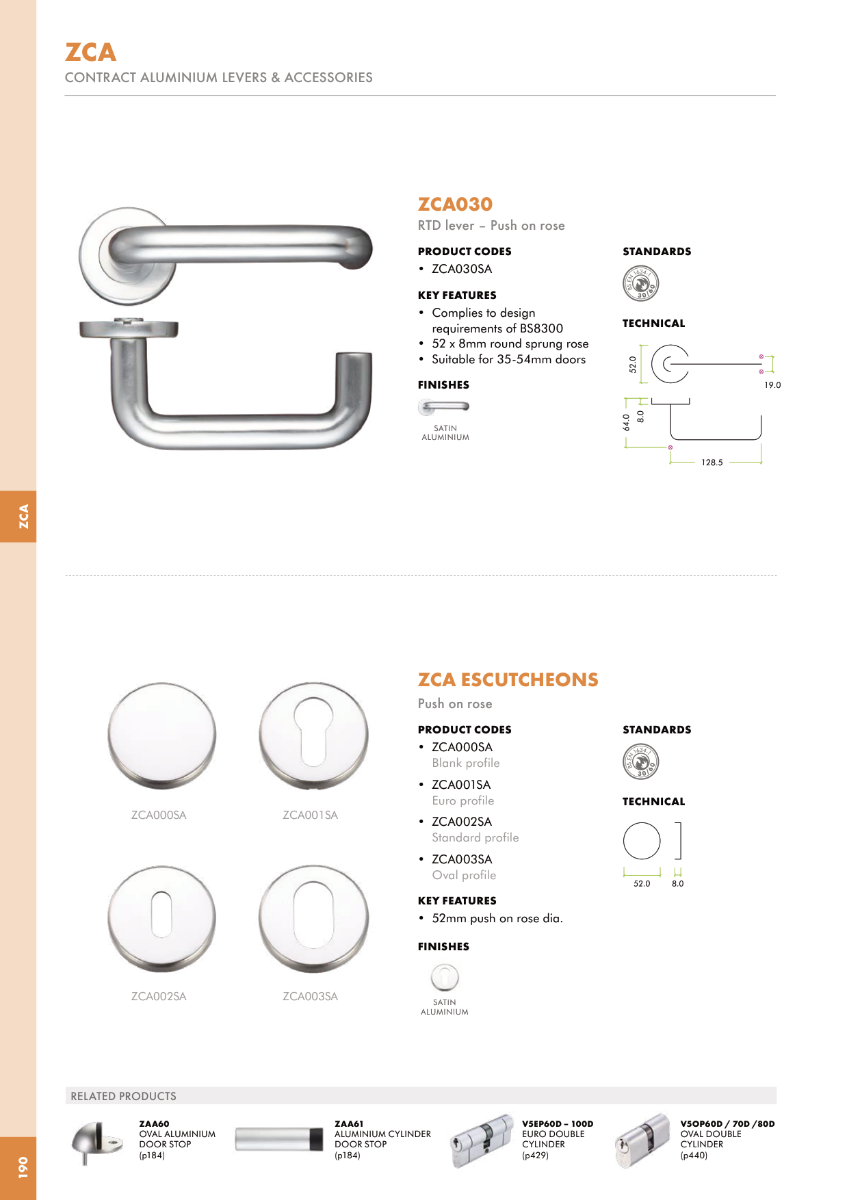

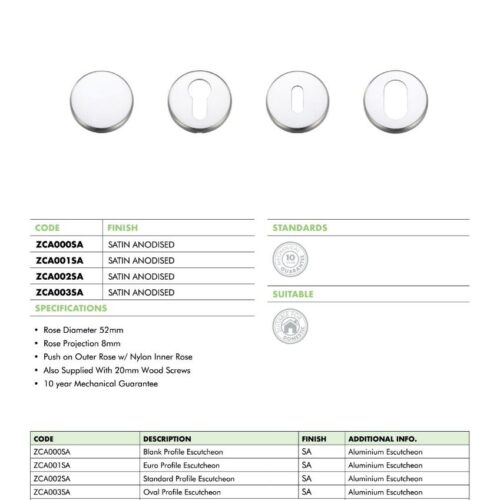

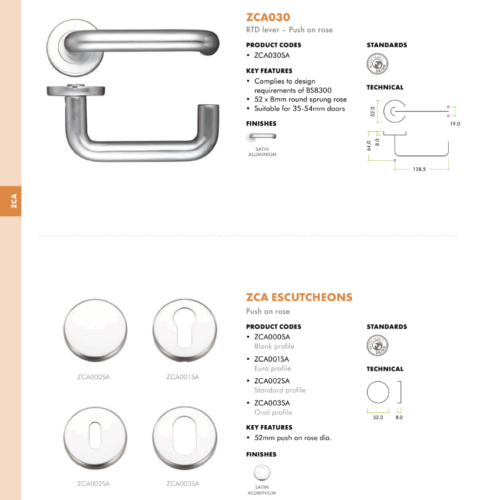

This 52mm escutcheons with push on rose is crafted with a high-quality satin aluminium finish, giving doors a clean, stylish, and durable look. The design ensures an easy push-on fitting, making installation quick and hassle-free while maintaining a secure hold. 52mm escutcheons smooth satin finish not only resists corrosion but also complements a wide range of modern and traditional door hardware.

Perfect for both residential and commercial use, this 52mm escutcheons provides a neat cover for keyholes, enhancing security and aesthetics. The sleek circular rose design of 52mm escutcheons blends seamlessly with contemporary interiors, while the sturdy aluminium construction ensures long-lasting performance. Designed to withstand daily wear,52mm escutcheons delivers functionality and elegance in one piece, making it an excellent choice for upgrading any door setup.
