Solid Drawn Brass Butt Hinge 38 x 22 x 1.3mm Hinge

In the world of high-end woodworking, the 38mm Solid Drawn Brass Butt Hinge (1.5 inches) is prized for its structural integrity. The “solid drawn” manufacturing process involves extruding the brass through a die, which creates a denser metal structure than casting or pressing. This results in a hinge with perfectly parallel leaves and a tight-tolerance pin, ensuring a smooth, “whisper-quiet” swing without the lateral wobble found in cheaper alternatives.

Measuring 38mm x 22mm with a slim 1.3mm thickness, this 38mm Solid Drawn Brass Butt Hinge is specifically scaled for small-to-medium cupboard doors, jewelry boxes, and lightweight furniture. Because it is solid brass, it is naturally non-ferrous and rust-proof, making it an excellent choice for coastal properties or high-end marine cabinetry where salt air would quickly degrade standard hardware.

Why the Solid Drawn Brass Hinge is the Professional Choice

• Extruded Strength: The solid drawn process ensures the hinge leaves are incredibly rigid, preventing them from bending under the weight of solid timber doors.

• Tight-Pin Precision: Features a high-quality fixed pin that maintains alignment over thousands of cycles, preventing “door sag” in precision-fitted cabinets.

• Naturally Corrosion-Resistant: Being solid brass throughout, these hinges will never rust or peel. They can be polished to a high mirror shine or left to develop a rich, natural patina over time.



• 1.3mm Slim Profile: The thin gauge allows for a discreet “closed-gap” fit, requiring minimal timber removal for a perfectly flush mortice.

• Countersunk Screw Holes: Designed with precision-drilled countersinks to ensure the fixing screws sit level with the leaf, preventing “screw-clash” when the hinge is closed.



• Timeless Aesthetic: The warm, classic tone of real brass complements both traditional oak furniture and modern painted cabinetry.

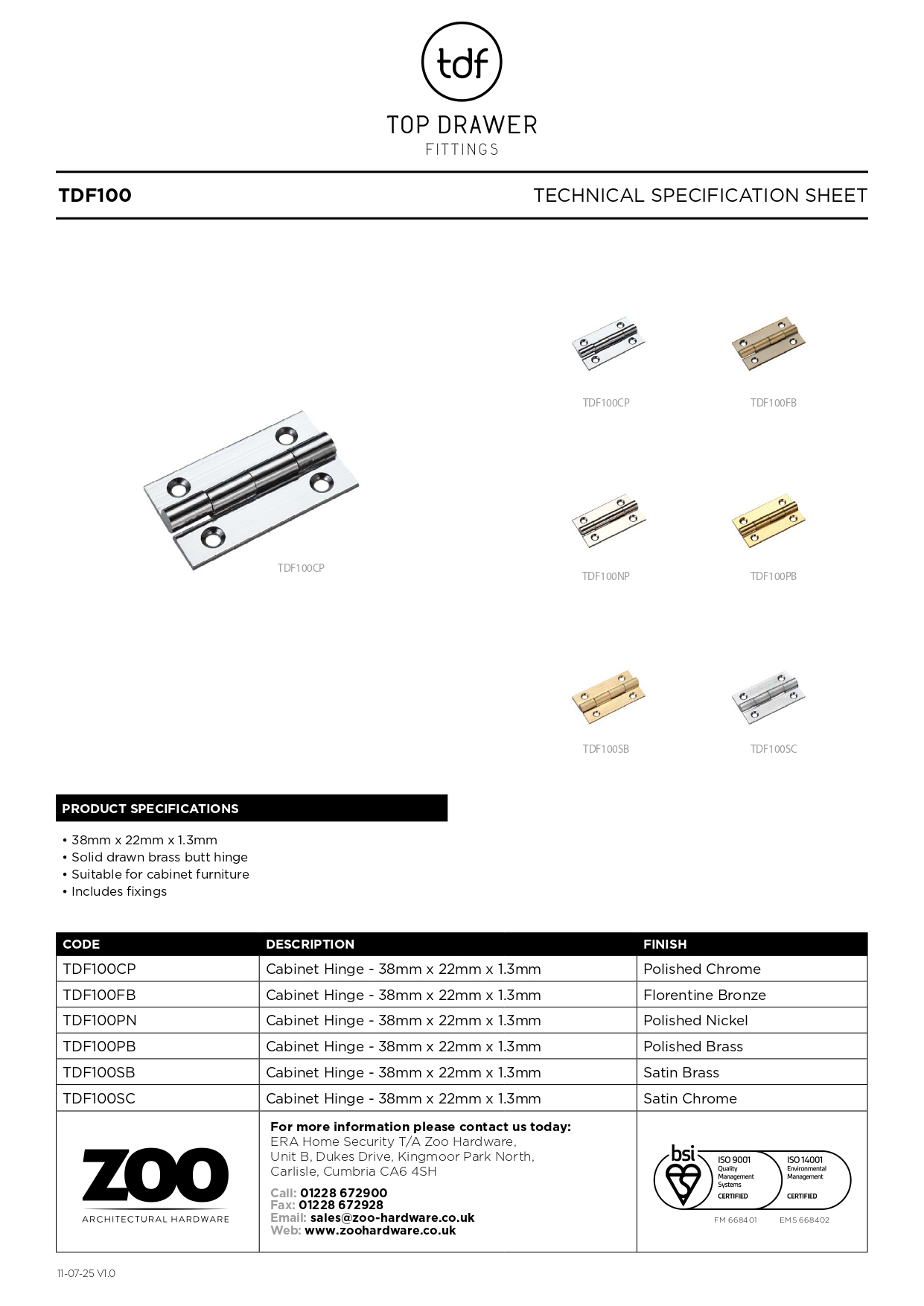

Technical Specifications of 38mm Solid Drawn Brass Butt Hinge

Professional Installation Tips for Fine Cabinetry of 38mm Solid Drawn Brass Butt Hinge

Fitting a 38mm Solid Drawn Brass Butt Hinge requires a steady hand and sharp tools to achieve an architectural finish:

1. Marking Out: Use a very sharp marking knife rather than a pencil to trace the hinge leaf. This provides a physical “track” for your chisel to follow, ensuring the mortice is not a fraction too large.

2. Mortice Depth: At 1.3mm thick, the mortice should be shallow. Use a sharp 1/2-inch chisel to remove the waste wood incrementally. If the hinge sits too deep, the door will “bind” against the frame; if it sits too proud, there will be an unsightly gap.

3. Pilot Holes are Essential: Brass screws (which usually accompany these hinges) are softer than steel. Always drill a pilot hole and “thread” it first using a steel screw of the same size to avoid snapping the brass screw heads.

4. Centering the Hinge: Use a self-centering “Vix” bit to ensure the screw holes are perfectly centered in the hinge leaf. Even a 0.5mm misalignment can pull the hinge out of its mortice as you tighten the screws.

5. Fine Finishing: Once installed, wipe the brass with a light coat of beeswax or microcrystalline wax to protect the finish from finger oils during the final stages of your project.

The Foundation of Heritage Furniture

The 38mm Solid Drawn Brass Butt Hinge is a small component that makes a massive impact on the perceived quality of a piece of furniture. It offers the tactile “heft” and smooth resistance that only real, solid metal can provide. By choosing a solid drawn hinge over a pressed alternative, you are ensuring your project is built to a standard that will last for generations.

This 38mm Solid Drawn Brass Butt Hinge , measuring 38 x 22 x 1.3mm, is a compact and durable hinge designed for small doors, cabinets, boxes, and light joinery projects. Made from high-quality solid brass, it provides strength, corrosion resistance, and a polished appearance that blends seamlessly with both traditional and modern furniture. The precision construction ensures smooth movement and long-lasting performance.

Ideal for furniture makers, joiners, and DIY enthusiasts, this 38mm Solid Drawn Brass Butt Hinge is easy to install and perfect for use in cupboards, craft projects, and fine woodwork. Its slim profile makes it discreet yet functional, offering reliable support without compromising on style. Combining durability with timeless appeal, this solid drawn brass butt hinge is a versatile solution for small-scale fittings.
