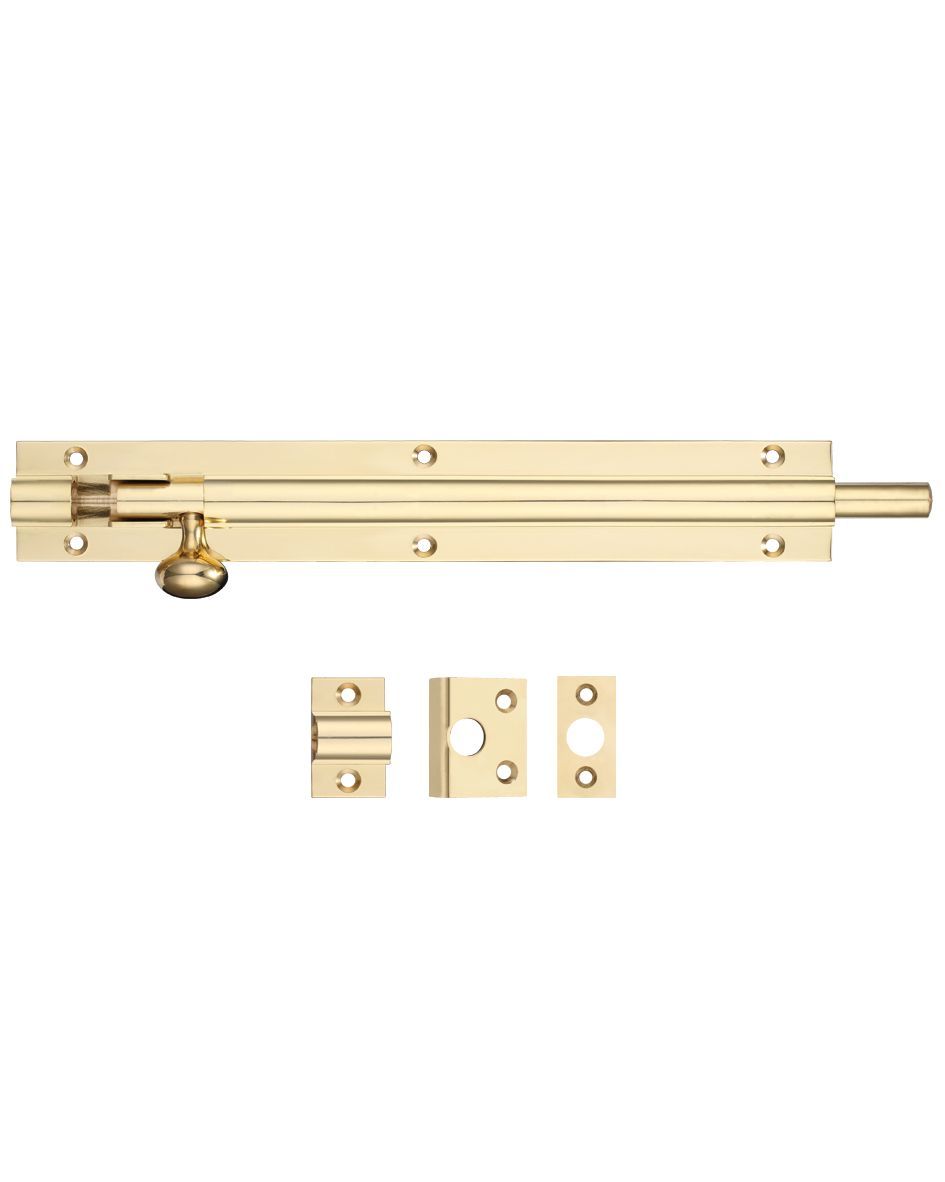

Architectural Barrel Bolt 150mm x 30mm

In professional ironmongery, the “Architectural” designation signifies a component manufactured to higher tolerances and material standards. The 150mm Architectural Barrel Bolt is crafted from Grade 304 Stainless Steel (SS304), ensuring it remains completely rust-proof and resistant to the pitting and oxidation common in lower-grade alternatives. This makes it the definitive choice for humid environments, coastal properties, and high-specification office suites.

The 150mm (6-inch) length is the most versatile size in the architectural range. 150mm Architectural Barrel Bolt is  substantial enough to provide a high level of physical security while maintaining a compact footprint that sits neatly on narrow door stiles. Finished in a premium Satin Stainless Steel (SSS), the 150mm Architectural Barrel Bolt features a brushed texture that perfectly complements modern lever handles and door hardware, maintaining its sleek appearance even under constant use.

Why the 150mm Architectural Barrel Bolt is the Professional Choice

• 6-Inch Structural Profile: The universal “standard” for architectural projects, offering a robust presence without being overbearing on internal doors.

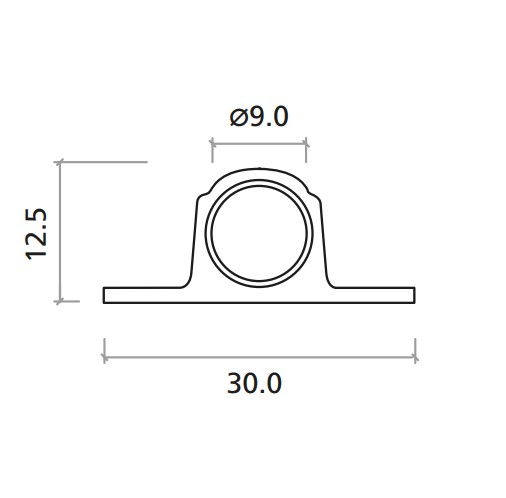

• Reinforced Solid-Core Shoot: Features a thickened diameter bolt (typically 10mm to 12mm) to offer high shear resistance against forced entry.

• Grade 304 Stainless Steel Build: Naturally resistant to corrosion and pollutants, ensuring the sliding mechanism remains smooth and never seizes.

• Precision-Guided Barrel: Machined for a tight fit to eliminate the “rattle” and play found in domestic-grade bolts, resulting in a silent and secure feel.

• Symmetrical Fixing Holes: Designed with balanced screw placements to ensure a clean, professional look when surface-mounted on high-end joinery.

• Universal Strike Plates: Supplied with both a flat plate for timber frames and a recessed floor socket or “bridge” keep for various installation scenarios.

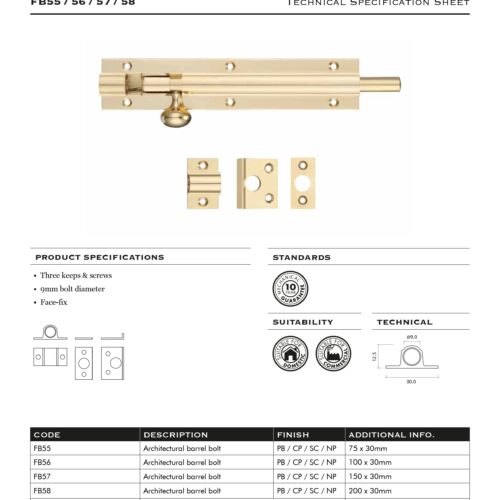

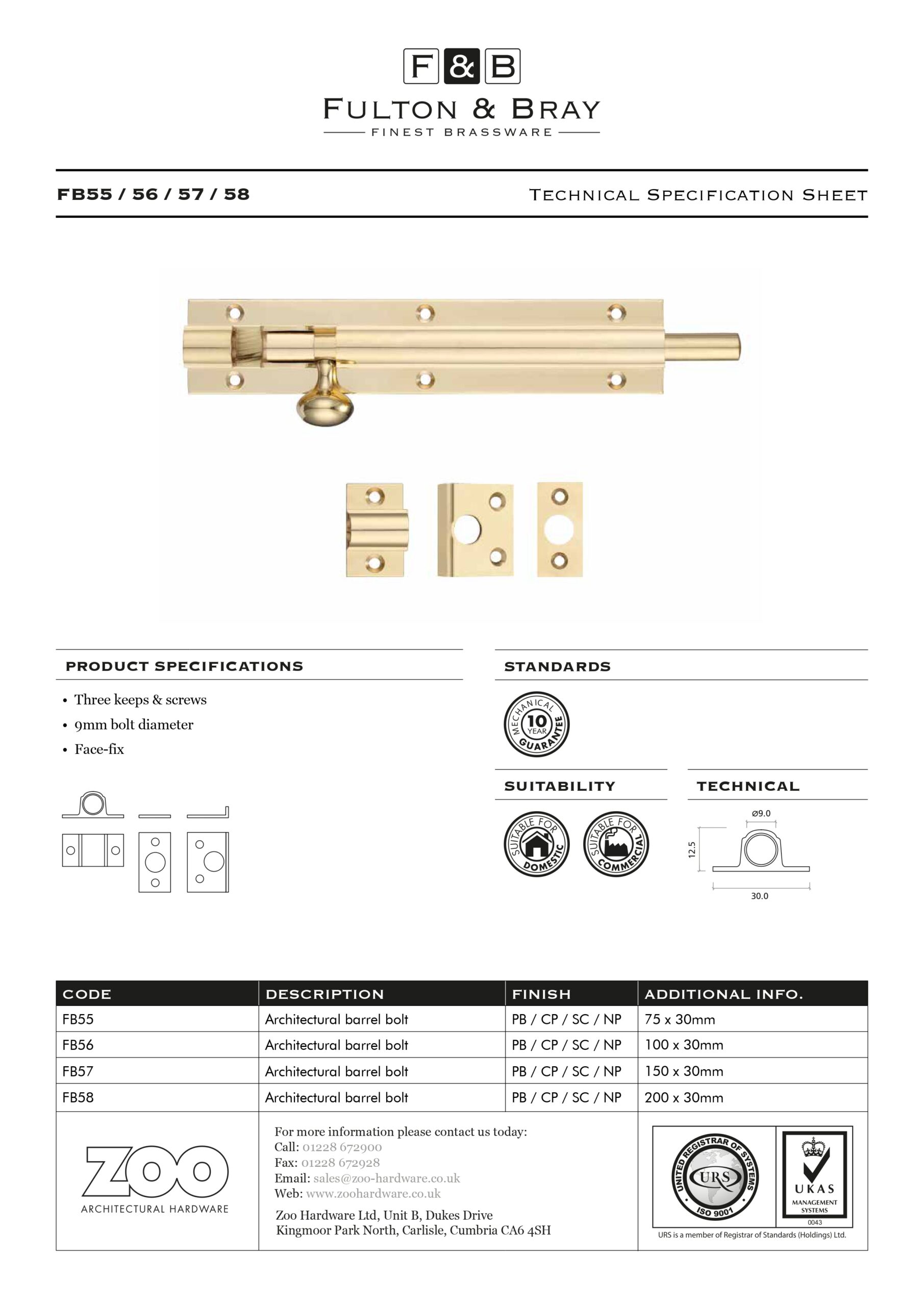

Technical Specifications of 150mm Architectural Barrel Bolt

Professional Installation and Maintenance Tips

To maintain the architectural integrity of the 150mm Barrel Bolt, follow these essential fitting guidelines:

1. Precision Pilot Holes: Stainless steel can be brittle if forced into dense hardwoods like Oak or Sapele. Always drill a pilot hole 75% of the screw’s diameter to prevent the heads from snapping off during installation.

2. Recess the Strike Plate: For a truly professional, flush-fit appearance, use a sharp chisel to recess the strike plate into the frame. This ensures the door remains secure without the plate catching on the door edge.

3. Horizontal Alignment: Use a spirit level to ensure the barrel and the strike plate are perfectly aligned. Even a 1mm offset can cause the bolt to “bind,” making it difficult to operate.

4. Allow for Seasonal Movement: Timber doors expand in high humidity. Ensure there is a small amount of clearance within the strike plate to allow the bolt to engage smoothly year-round.

5. Dry Lubrication Routine: To keep the architectural slide feeling “silk-smooth,” apply a small amount of graphite powder or dry PTFE spray once a year. Avoid standard oils or grease, as they attract dust which can cause the mechanism to feel “gritty.”

The Standard for High-End Security

The 150mm Architectural Barrel Bolt is the definitive choice for projects where the hardware must look as good as it performs. It bridges the gap between purely functional security and high-end design. By selecting a solid-core, SS304 architectural bolt, you are investing in a tactile detail that enhances the safety and visual continuity of your property.

Secure your doors, gates, and shutters with this 150mm Architectural Barrel Bolt, designed for durability, strength, and smooth operation. Made from premium materials, this bolt ensures a reliable locking mechanism while maintaining an elegant architectural finish, making it suitable for both residential and commercial applications. Its compact 150mm size offers efficient security without taking up extra space.

Easy to install and built for long-term use, this 150mm Architectural Barrel Bolt is ideal for both DIY enthusiasts and professional installers. The heavy-duty construction withstands daily wear and tear, delivering dependable performance over time. Perfect for internal doors, garden gates, and shutters, this bolt combines strength, practicality, and refined architectural design for complete peace of mind.
